3' E93 LCI 320i Exhaust system, rear

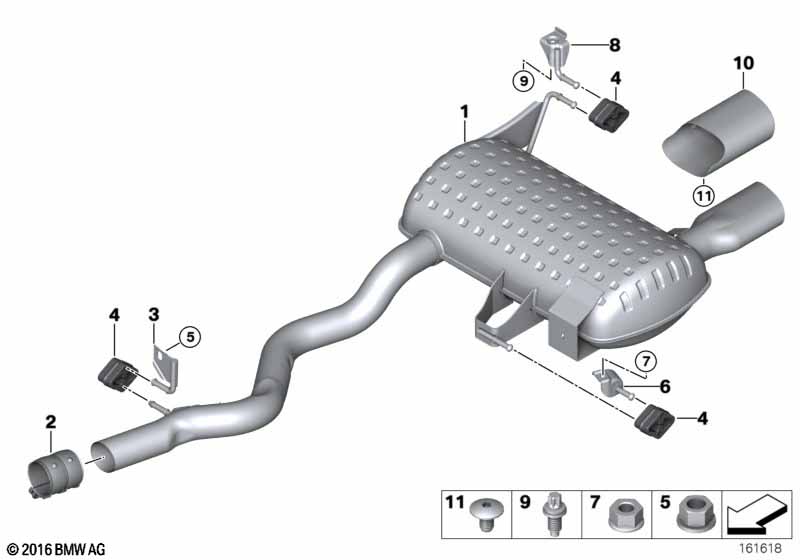

Exhaust system, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear muffler 1 18307568060
02 Clamping bush D=60MM 1 18307560779 $34.61
03 Holder 1 18207549977 $22.83
04 Rubber Mounting 2 18208511880
05 Hex nut M12X1,5ZNNIV SI 1 07129904866 $1.85
06 Holder 1 18307526848 $17.63
07 Flange nut 1 07143413174 $0.36
08 Holder 1 18207526850 $22.83
09 Torx-bolt with washer ASA M8X25 1 51217062145 $1.17
10 Tailpipe end piece, alu-look 1 18307618463
11 Fillister head screw M6X10 1 52537654427 $3.06
not suitable for
-- Tailpipe end piece, alu-look X 18302163710 ENDED
-- Tailpipe end piece, alu-look X 18307618463
Notes
  • ENDED = the part has been discontinued (no longer available).
