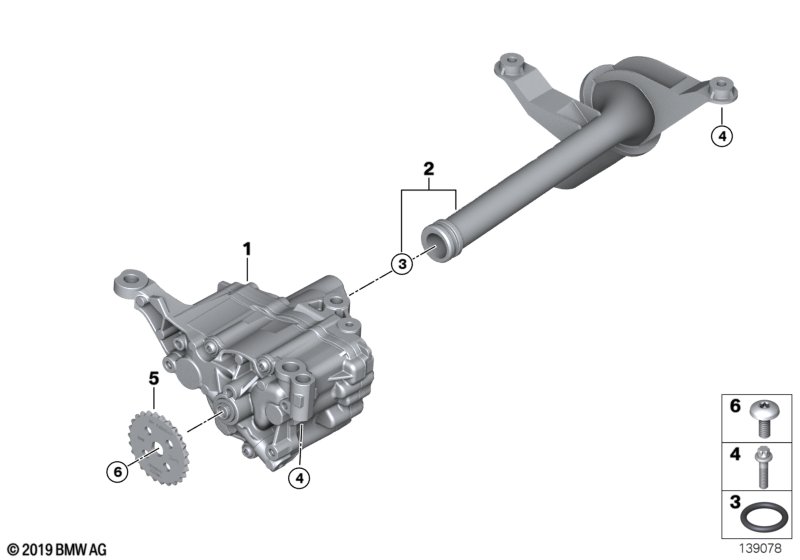

3' E93 LCI 325i Lubrication system/Oil pump

No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
---|---|---|---|---|---|---|---|---|---|
01 | Oil pump | 1 | 11417551004 | ||||||
only in conjunction with | |||||||||
-- | Set of aluminium screws oil pump | 1 | 11410426472 | $15.33 | |||||
Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
|||||||||
02 | Suction pipe | 1 | 11417520864 | $42.08 | |||||
only in conjunction with | |||||||||
-- | Set of aluminium screws oil pump | 1 | 11410426472 | $15.33 | |||||
Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
|||||||||
03 | O-ring | 24,8X3 | 1 | 11417527092 | $6.08 | ||||
Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
|||||||||
04 | Set of aluminium screws oil pump | 1 | 11410426472 | $15.33 | |||||
05 | Sprocket | 1 | 11417519870 | $15.00 | |||||
06 | Torx screw | M8X20 | 1 | 11417520144 | $1.03 |
