6' E64 LCI 630i Seat, front, seat frame

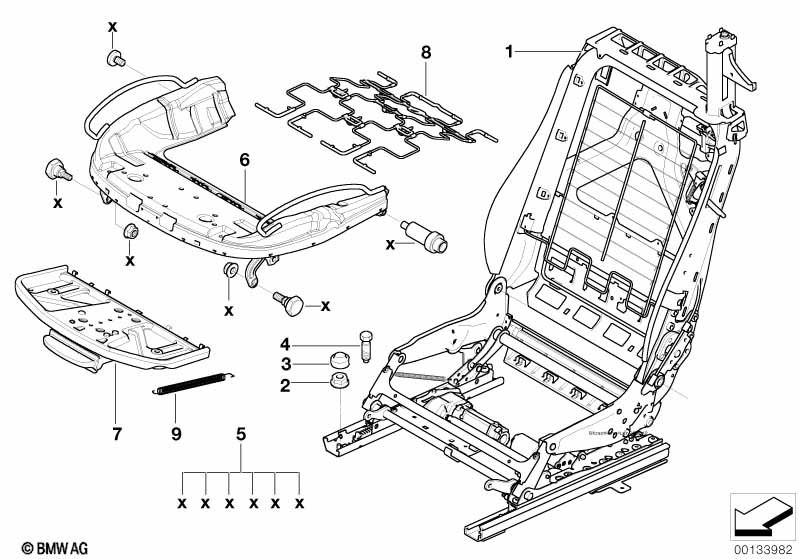

Seat, front, seat frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Seat adjuster, electric, with memory
Passenger's side

S459A=Yes
01 Seat backrest frame right 1 07/2006 09/2007 52109118182 $1508.68
01 Seat backrest frame right 1 09/2007 52109155734
For vehicles with
Seat adjuster, electric, with memory
Driver's side

S459A=Yes
01 Seat backrest frame left 1 07/2006 09/2007 52109118179 $1635.24
01 Seat backrest frame left 1 09/2007 52109155731
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
Passenger's side

S459A=Yes

S481A=Yes
01 Seat backrest frame right 1 07/2006 09/2007 52109118176 $1732.56
01 Seat backrest frame right 1 09/2007 52109155730 $1784.28
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
Driver's side

S459A=Yes

S481A=Yes
01 Seat backrest frame left 1 07/2006 09/2007 52109118173 $1732.56
01 Seat backrest frame left 1 09/2007 52109155727
02 Hex nut with ribs M10 2 06/2007 52108265533 $0.78 ENDED
02 Hex nut with ribs M10 2 07149156956 $0.56
03 Covering cap 2 52108119867 $0.21
04 Hex bolt M10 3 52108211438 $0.71
05 Mounting parts set 2 52107011759 $10.22
06 Seat pan left 1 52107019253 $72.63
06 Seat pan, right 1 52107019254 $72.63
For vehicles with
Seat adjuster, electric, with memory
or
Sports seat

S459A=Yes

S481A=Yes
07 Carrier thigh support 2 52108226281 $61.70
08 Elastic mat 2 52108267395 $24.73
For vehicles with
Seat adjuster, electric, with memory
or
Sports seat

S459A=Yes

S481A=Yes
09 Spring 2 52108099031 $1.93
Notes
  • ENDED = the part has been discontinued (no longer available).
