6' E64 LCI 630i Seat, front, electrical and motors

Seat, front, electrical and motors

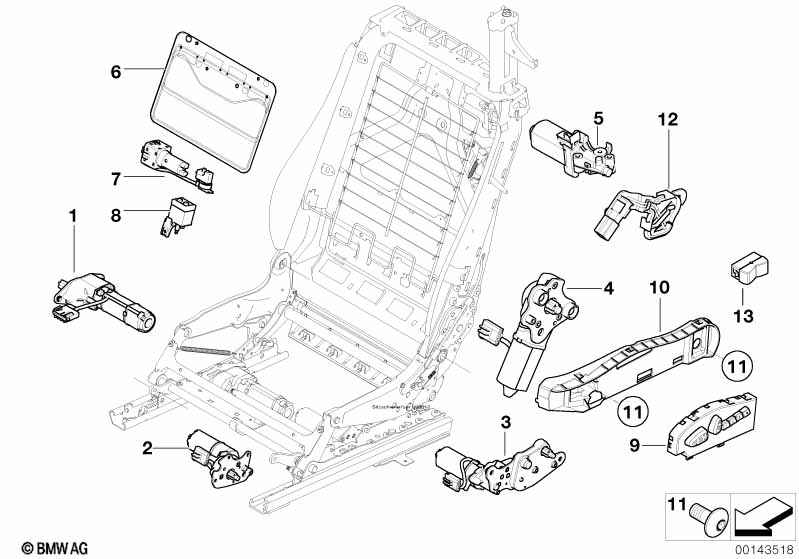

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Seat adjuster, electric, with memory

S459A=Yes
DRIVER AND CO-DRIVER
01 Drive, longitudinal seat adjustment left MEMORY 1 67667011735 $215.60
01 Drive, longitudinal seat adjustment rght MEMORY 1 67667011736 $215.60
Driver's side
02 Drive, seat angle adjustment left MEMORY 1 67667011739 $215.60
Passenger's side
02 Drive, seat angle adjustment right 1 67667011746 $215.60
Driver's side
03 Drive, seat height adjustment left MEMORY 1 67667011737 $215.60
Passenger's side
03 Drive, seat height adjustment right 1 67667011744 $215.60
Driver's side
04 Actuator, backrest adjustment left 1 67668267407 $215.60
Passenger's side
04 Actuator, backrest adjustment right 1 67668267404 $215.60
DRIVER AND CO-DRIVER
05 Actuator, headrest left 1 67668267405 $150.92
05 Actuator, headrest right 1 67668267406 $150.92
06 Left lordosis pad 1 52107008129 $45.14
06 Right lordosis pad 1 52107008130 $45.14
07 Lumbar support pump 2 04/2003 52107115693 $133.17 ENDED
07 Lumbar support pump 2 67807025381 $115.41
08 Valve unit 2 52107115694 $103.32
Driver's side
09 Actuation unit left 1 52108255377 $138.21
Passenger's side
09 Actuation unit right 1 52108255380 $138.21
For vehicles with
Sports seat
Driver's side

S481A=Yes
09 Actuation unit left 1 52108255381 $138.21
For vehicles with
Sports seat
Passenger's side

S481A=Yes
09 Actuation unit right 1 52108255384 $138.21
10 Support f left seat adjustment 1 52108267437 $25.86
10 Support f right seat adjustment 1 52108267438 $25.86
11 Torx screw M6X20 T30 4 07/2007 52107003549 $0.60 ENDED
11 Torx screw M6X20 T30 4 07/2007 07149168393 $1.02
DRIVER AND CO-DRIVER
12 Micro switch left 1 52107025193 $59.69
12 Micro switch right 1 52107025194 $59.69
13 Switch f longitudinal seat adjustment 2 61318099495 $60.61
Notes
  • ENDED = the part has been discontinued (no longer available).
