3' E46 330d Radio BMW Reverse

Radio BMW Reverse

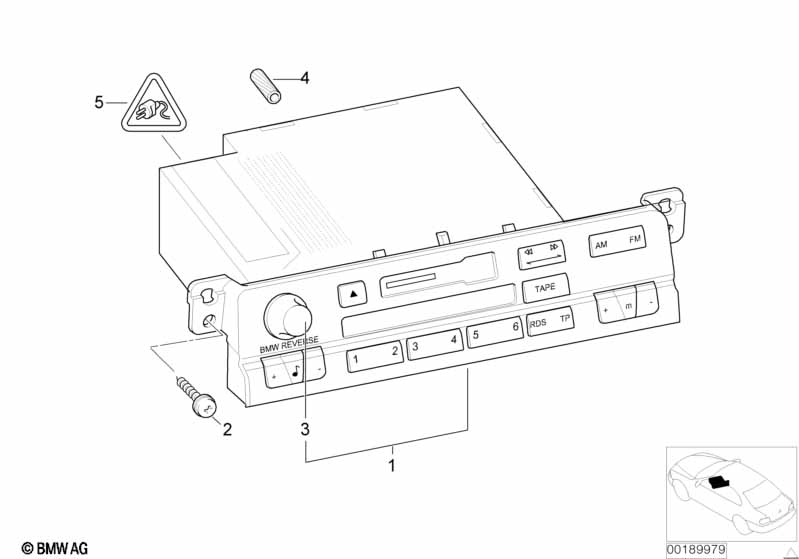

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. radio BMW REVERSE 1 03/2001 65126902658 ENDED
01 Exch. radio BMW REVERSE 1 03/2001 65126923843 ENDED
01 Exch. radio BMW REVERSE 1 03/2001 65126923842 ENDED
only in conjunction with
01 Exch. radio BMW REVERSE 1 03/2001 65126943426
only in conjunction with
-- Antenna adapter tubing 1 03/2001 61126913955 $33.05
01 Exch. radio BMW REVERSE 1 03/2001 02/2002 65126912630 ENDED
01 Exch. radio BMW REVERSE 1 03/2001 09/2004 65126923842 ENDED
01 Exch. radio BMW REVERSE 1 03/2001 65126943426
02 Fillister head self-tapping screw ST4,2X19 ZN-SW 2 01/2007 07119901179 $0.25 ENDED
02 Sheet metal screw ST4,2X19-U2-C-H 2 07119904176 $0.25
03 Button 1 65126907815 $7.84
04 Radio supporting pin 1 65128370535 $0.94
05 Plug housing 17 POL. 1 03/2001 61131390416 $10.22
only in conjunction with
-- Brand module GR.3 ZWEISEITIG X 03/2001 81700007499 ENDED
-- Snap-in receptacle 2.5 with cable 1,0-2,5 MM² X 03/2001 61130007450 $2.32
-- Clip f plug terminal 1 03/2001 61131390431 $1.90
Notes
  • ENDED = the part has been discontinued (no longer available).
