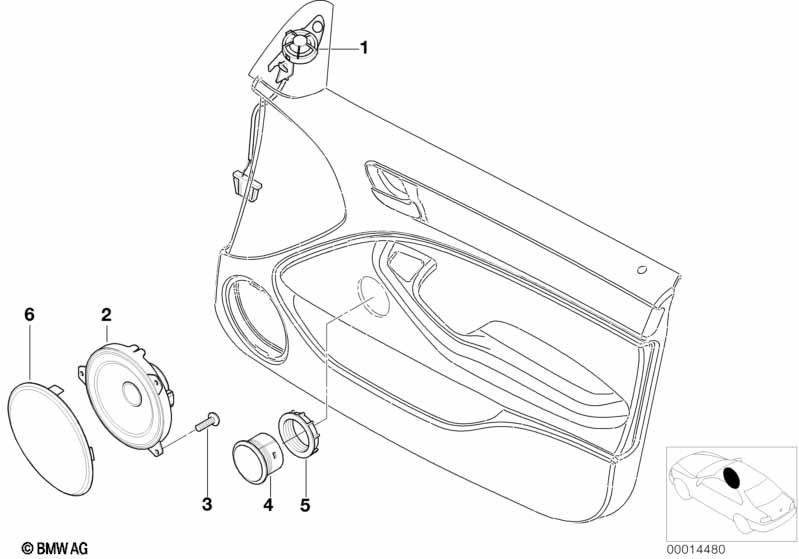

3' E46 330d Single parts f front door hifi system

Single parts f front door hifi system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i The wiring for the loudspeakers
is included in the door wiring harness
01 Left hifi loudspeaker tweeter 1 65138368235 $45.28
01 Right hifi loudspeaker tweeter 1 65138368236 $45.28
02 bass loudspeaker hifi system 50-7.000HZ 2 65138368238 $46.35
03 Saucer-head screw 6 51168107577 $0.25
04 mid-range loudspeaker hifi SCHWARZ 2 65138368237 $46.35
04 mid-range loudspeaker hifi PERLGRAU 2 65136911460 $46.35
04 mid-range loudspeaker hifi PEACH 2 65138374757 $46.35
04 mid-range loudspeaker hifi GRAU 2 65138374748 $46.35
04 mid-range loudspeaker hifi MARINEBLAU 2 65138374749 $46.35
04 mid-range loudspeaker hifi HELLBEIGE 2 65138374750 $46.35
04 mid-range loudspeaker hifi TANINROT 2 65138374751 $46.35
04 mid-range loudspeaker hifi MINT 2 65138374752 $49.38
04 mid-range loudspeaker hifi LIGHTGELB 2 65138374753 $46.35
04 mid-range loudspeaker hifi BROMBEER 2 09/2001 65106915136 $49.38
04 mid-range loudspeaker hifi NATURBRAUN 2 09/2001 65106915137 $46.35
04 mid-range loudspeaker hifi TRAUMROT 2 09/2001 65106915138 $49.38
For vehicles with
Fabric/leather "Scritto"/mystic-blau

V8MF=Yes
04 mid-range loudspeaker hifi MYSTICBLAU 2 03/2003 65106926711 $49.38
For vehicles with
Leather, "Chameleon"/kiesel-grau

V3KA=Yes
04 mid-range loudspeaker hifi KIESELGRAU 2 03/2003 65106926710 $46.35
05 Loudspeaker threaded ring 2 65138360690 $1.77
06 Cover loudspeaker left SCHWARZ 1 51418213911 $8.51
06 Cover loudspeaker right SCHWARZ 1 51418213912 $8.51
06 Cover loudspeaker left GRAU 1 51418224377 $8.51
06 Cover loudspeaker right GRAU 1 51418224378 $8.51
06 Cover loudspeaker left HELLBEIGE 1 51418224387 $8.51
06 Cover loudspeaker right HELLBEIGE 1 51418224388 $8.51
