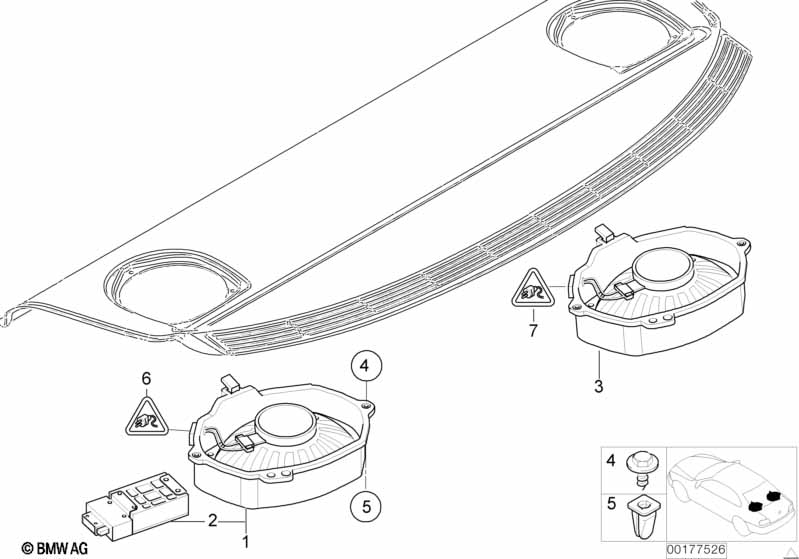

3' E46 330d Subwoofer hifi system Harman Kardon

Subwoofer hifi system Harman Kardon
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 subwoofer left top hifi system HARMAN KARDON 1 65136920997 $484.43
02 Amplifier subwoofer HARMAN KARDON 1 65136920999 $256.98
03 subwoofer right top hifi system HARMAN KARDON 1 65138369940 $198.33
04 Hex head screw ST4,8X16-ZNS 6 07119901294 $0.25 ENDED
04 Hex head screw ST4,8X16-ZNS3 6 07119901299 $0.25
05 Expanding nut ST 4.8 6 63121374075 $0.23
06 Socket housing 10 POL. SCHWARZ 1 61131383518 $4.42
07 Plug housing 1 61131378106 $1.55
only in conjunction with
-- Circular contact 2.5 0,5-1,0MM² 4 61131376191 $0.55
Notes
  • ENDED = the part has been discontinued (no longer available).
