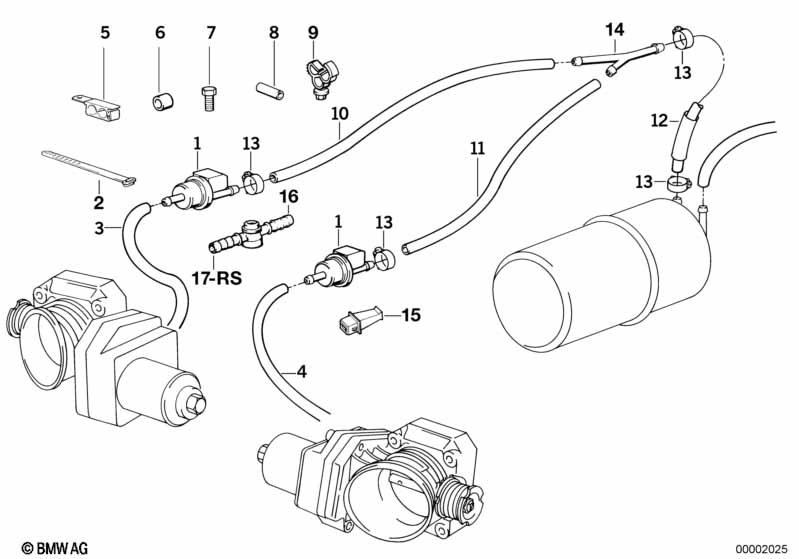

8' E31 850Ci Fuel tank breath.valve/disturb.air valve

Fuel tank breath.valve/disturb.air valve
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel tank breather valve BOSCH 2 13901711395 $155.67
02 Cable tie 1 61131391721 $1.77
03 Hose with anti-scuffing 8X13MM 1 13311733498 $16.48
04 Fuel hose 8X13MM X 16121180409 $20.43
05 Clip 1 13311722326 $1.73
06 Spacer bush 1 13901731074 $1.38
07 Hex bolt with washer M6X35-Z3 1 10/1996 07119913712 $0.51 ENDED
07 Hex bolt with washer M6X35-U1-8.8 1 07119904589 $0.47
08 Cap D=7,0MM 2 11611727176 $3.39
09 Wire holder, two-place 1 61138380213 $0.35
10 Fuel hose 6X11MM X 13311272750 $11.62
11 Fuel hose 6X11MM X 13311272750 $11.62
12 Hose with anti-scuffing 6X11MM 1 13901733164 $15.63
13 Hose clamp L12-15 7 07129952104 $1.18
14 Distribution piece 1 13311733990 $1.28 ENDED
For vehicles with
Activated Charcoal Filter
and
Catalytic converter

=Yes

=Yes
15 Resistor 1000OHM/BOSCH 1 13901734469 $6.33
Notes
  • ENDED = the part has been discontinued (no longer available).
