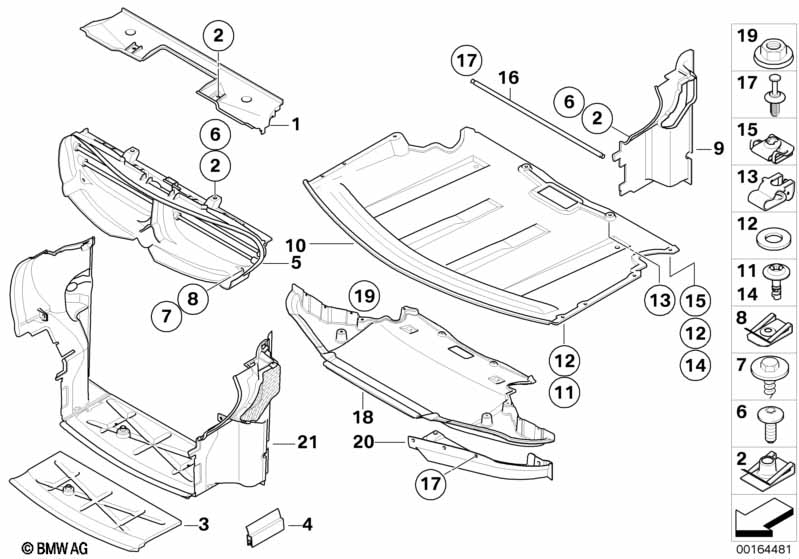

6' E63 M6 Shielding, engine compartment/air ducts

Shielding, engine compartment/air ducts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air duct, top 1 51747052464 $11.37
02 C-clip nut M6-ZNS3 2 51127070202 $1.00
06 Torx bolt ISA M6X18 SW 4 07146959923 $0.55
09 Air duct front left 1 51747898209 $33.90
09 Air duct front right 1 51747898210 $33.90
16 Connection rod, front air duct 1 51748040116 $8.71
17 Expanding rivet D = 6MM 2 51111908077 $0.30
18 Engine compartment screening, front 1 51758042976 $239.97
only in conjunction with
-- Aerodynamic cover, left 1 51758041837 $59.95 +core
-- Aerodynamic cover, right 1 51758041838 $59.95 +core
19 Flange nut with washer M8-8-ZNS3 4 26117574872 $0.80
20 Aerodynamic cover, left 1 51758041837 $59.95 +core
20 Aerodynamic cover, right 1 51758041838 $59.95 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
