3' E46 330d Engine block

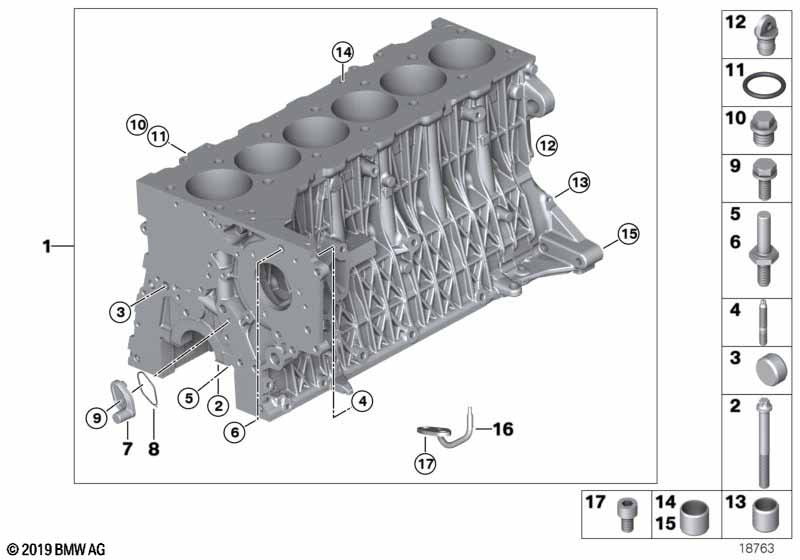

Engine block
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
EU4 exhaust emissions standard

S167A=Yes
01 Engine block with piston 1 06/2006 11110306104 +core
Required for repair
-- Primer Loctite 171000 4ML 1 06/2006 83197515683 $11.90
01 Engine block with piston 1 06/2006 11110418646
Required for repair
-- Primer Loctite 171000 4ML 1 06/2006 83197515683 $11.90
For vehicles with
EU4 exhaust emissions standard

S167A=No
01 Engine block with piston 1 11117790466
Required for repair
-- Primer Loctite 171000 4ML 1 83197515683 $11.90
02 Hex bolt M10X80 14 11117787806
03 Plug D=12,0MM 3 11111268539 $0.58
04 Stud bolt M8X42 3 11117791452 $1.08
05 Bolt 3 11112247197 $5.14
06 Bolt 1 11117787559 $5.14
07 Oil Spraying Nozzle 1 11117787860 $15.22
08 Profile-gasket 1 11117781437 $3.62
09 ISA screw M6X16 1 07129904963 $0.82
10 Screw plug M14X1,5-ZNNIV 1 07119904539 $2.56
11 Gasket ring A14X20-AL 1 07119963225 $0.11
12 Blind plug 1 11111714541 $1.60
13 Dowel D=10,5MM 6 11121726238 $1.62
14 Dowel D=14,5MM 2 11112245180 $1.65
15 Dowel D=14,5MM 2 11117524470 $1.65
16 Oil Spraying Nozzle 6 11427787569 $14.97
17 ISA screw M6X10-8.8-ZNS3 12 07129903804 $1.93
Notes
  • +core = plus core charge (possibility of a return of the old part)
