3' E46 330d Vacum control-engine-turbo charger

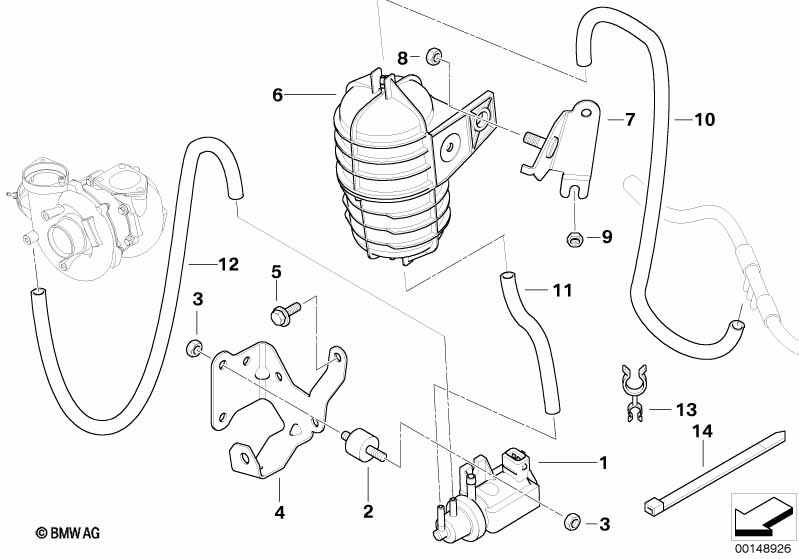

Vacum control-engine-turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
EU4 exhaust emissions standard

S167A=No
01 Pressure converter 1 11747796634 $128.76
02 Rubber Mounting 2 11652247721 $8.12
03 Hex nut BM6-8-ZNNIV SI 4 07129905411 $0.38
04 Holder 1 11657785498
05 Hex bolt with washer M6X12-U1-8.8 2 07119904517 $0.36
06 Vacuum tank 1 11652247620 $29.33
07 Bracket for vacuum tank 1 11657790329
08 Self-locking collar nut M8-8-ZNS3 1 07119904295 $0.36
08 Self-locking collar nut M8-10 ZNS3 1 07119905374
09 Hex nut M6-8-ZNNIV SI 2 07119905544 $0.64
10 Vacuum hose black 3,5X2,0 X 11747797129 $17.14
11 Vacuum hose black 3,5X2,0 X 11747797129 $17.14
12 Vacuum hose blue 3,5X2,0 X 11657796879 $16.43
13 Hose clamp 7/37 1 11657789404
14 Cable tie L=200MM/B=3,6MM 1 61131367599 $0.43
