3' E46 330d Cooling System Water Hoses

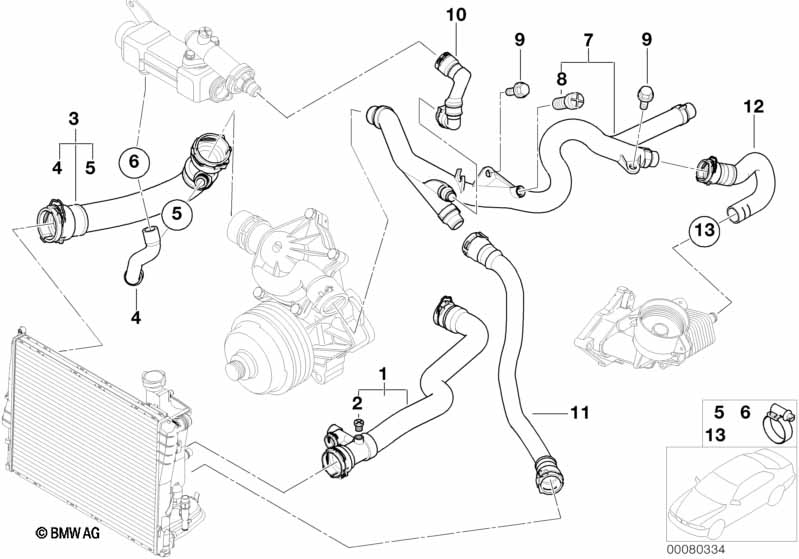

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Heater water hose
see main section 64
For vehicles with
EU4 exhaust emissions standard
and
Automatic transmission



S167A=No

S205A=Yes
01 Water hose 1 11537787720 +core
02 Vent screw M10 1 11537793373 $5.79
03 Water hose 1 11537787177 +core
04 Water hose 1 11537786724
05 Hose clamp L18-24 1 07129952109 $1.07
06 Hose clamp L16-30 1 64218367179 $1.07
07 Pipe, heater return-hose connection 1 11537802632 $59.75
08 Vent screw M10 1 11537793373 $5.79
09 Collar screw M6X18-ZNS3 2 11537804636 $0.60
10 Hose for EGR cooler 1 11537792622 $11.33 +core
only in conjunction with
-- Hose clamp L16-30 1 64218367179 $1.07
11 Water hose 1 11537788085 +core
12 Hose, heat exchanger-return pipe 1 11537805359 $18.87
13 Hose clamp L16-30 1 64218367179 $1.07
Notes
  • +core = plus core charge (possibility of a return of the old part)
