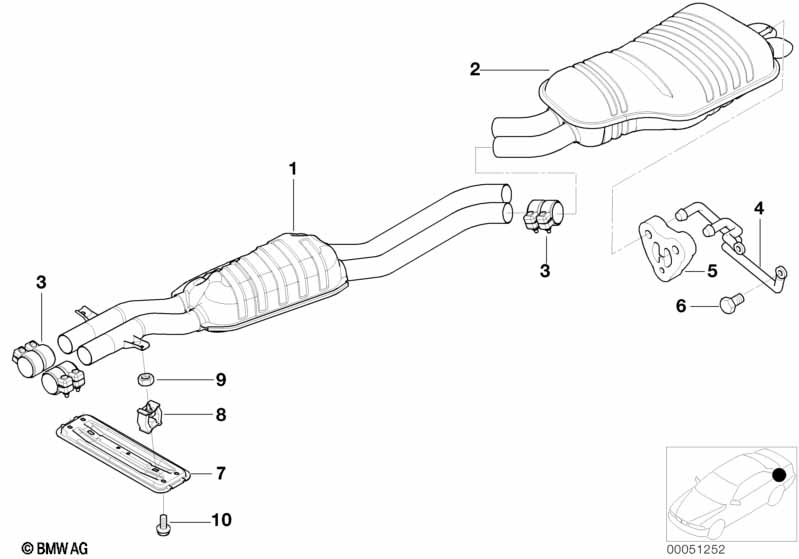

3' E46 330d Exhaust system, rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18307792158 | ||||||
| 02 | Rear muffler | 1 | 18307792031 | ||||||
| 03 | Clamping bush | D=50MM | 4 | 18307560777 | $34.61 | ||||
| 04 | Holder | 1 | 18212247709 | ||||||
| 05 | Suspension loop | 1 | 18207785776 | ||||||
| 06 | Hex bolt | M8X12 | 2 | 07119902002 | ENDED | ||||
| 06 | Hex bolt with washer | M8X12-8.8-ZNS3 | 2 | 07119906018 | $0.64 | ||||
| 07 | Connecting support | 1 | 18211436309 | $11.66 | |||||
| 08 | Rubber Mounting | 2 | 18207790693 | ||||||
| 09 | Flange nut | 4 | 07143413174 | $0.36 | |||||
| 10 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 |
Notes
- ENDED = the part has been discontinued (no longer available).
