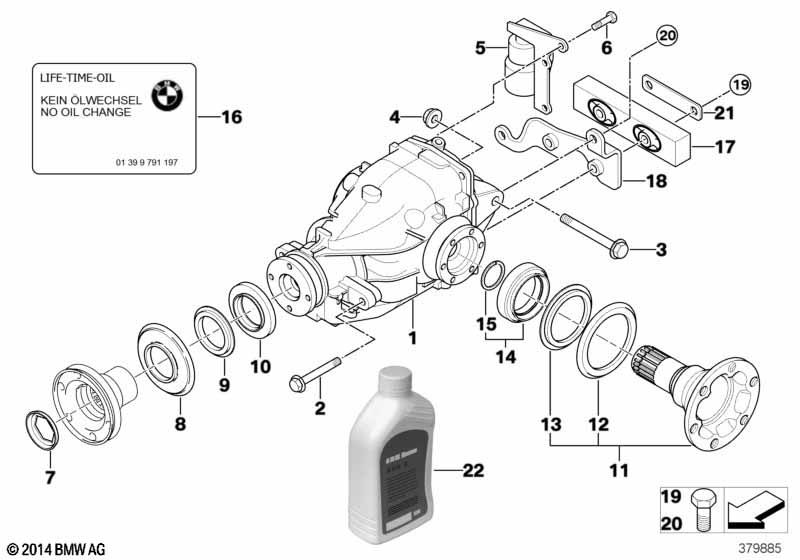

3' E46 330d Differential-drive/output

Differential-drive/output
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. final drive I=2,47 1 33107526154
COMPRISES
Vibration absorber
For vehicles with
Automatic transmission

S205A=Yes
01 Exch. final drive I=2,81 1 33101428918
02 Hex bolt with washer M12X1,5X80 ZNS3 2 33176760337 $1.81
03 Hex bolt with washer M14X1,5X133ZNS3 1 33176760336 $8.88
04 Self-locking collar nut M14X1,5-10 ZNS3 1 33306760349 $1.33
07 Securing plate 1 33121205138 $1.33
Important! Drive flange and nut must
not be replaced.
08 dustcover plate, large 1 33127518511 $2.11
09 dustcover plate, small 1 33121214064 $0.84
10 Shaft seal 50X78X10/15 1 33107609536
11 Drive flange output LK.94 2 33131428894
only in conjunction with
-- Shaft seal with lock ring 100X50X10 2 33107505605 $20.09
LK = bolt hole
12 Dust guard ring, outer D=80 2 33131214445 $1.57
13 Dust guard ring, inner D=54 2 33131214446 $1.50
14 Shaft seal with lock ring 100X50X10 2 33107505605 $20.09
15 Lock Ring D=26,7 2 33131213997 $0.29
16 Stick-on label DE, EN 1 01399791197 $4.25
For vehicles with
Automatic transmission

S205A=No
17 Vibration absorber 1 33107527830
18 Bracket, vibration absorber 1 33117527828
19 Hex bolt with washer M10X45-U1 2 04/2003 07119905636 $2.16
19 Hex bolt M10X50-ZNNIV SI 2 04/2003 07119905641 $1.16
20 Hex nut with ribs M10X30-ZNS3 2 33117536934
21 Securing plate 1 04/2003 33107530704
22 BMW synthetic OSP 1L X 83222365987
Filling quantity, see Additional
Information
