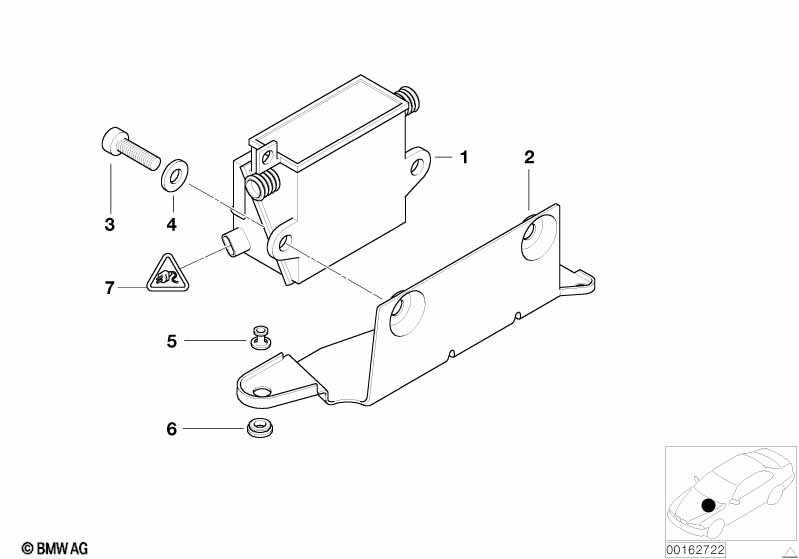

3' E46 330d Flow heater electr.

Flow heater electr.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Flow heater electr. 1 64129145439
02 Holder 1 64126904673
03 Fillister-head screw M6X20 2 07119901473 $1.54
04 Washer 6,4X15X3-ZNS3 2 46611453999 $2.54
05 Bracket, rubber grommet 3 64128385151
06 Rubber grommet 4 64128364482 $1.82
07 Universal socket housing uncoded 2 POL. 1 08/2006 61138365340 $2.98 +core
only in conjunction with
-- Contact bushing MQS ELA with cable 0,5-0,75 MM² AG 2 08/2006 61130056384
-- Contact bushing MQS ELA with cable 0,35-0,5 MM² AG 2 08/2006 61130056961
07 Rep. kit for socket housing 2 POL. 1 61132359999
only in conjunction with
-- Contact bushing MQS ELA with cable 0,5-0,75 MM² AG 2 61130056384
-- Contact bushing MQS ELA with cable 0,35-0,5 MM² AG 2 61130056961
Notes
  • +core = plus core charge (possibility of a return of the old part)
