6' E64 M6 Glove box

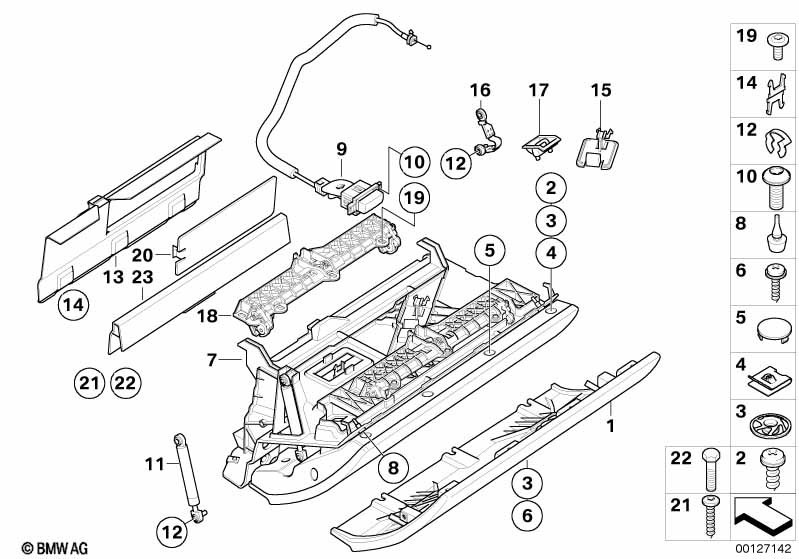

Glove box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Leather "Merino"
or
100% Leather merino

LK=Yes

X3=Yes
01 Trim panel, knee protector SCHWARZ 1 51168040868 +core
02 Fillister head self-tapping screw ST4,2X16-Z1-SW 6 09/2003 07119900672 $0.18 ENDED
02 Sheet metal screw ST4,2X16MM 6 07119904172 $0.25
03 Wave washer 6 51457146495 $0.50
04 C-clip sheet metal nut 6 07149128047 $0.36
05 Covering cap 6 51167012812 $0.54
06 Screw 4X14 7 07149115641 $0.27
For vehicles with
Full leather"Merino",sepang-bronze,light

X3A8=Yes
07 Glove box, leather SEPANG BRONZE 1 51167891316
For vehicles with
Full leather Merino/Portland nat.brown

X3B1=Yes
07 Glove box, leather PORTLAND NATUR 1 51167891318
For vehicles with
Full leather Merino/black

X3SW=Yes
07 Glove box, leather SCHWARZ 1 51167891314
For vehicles with
All leather "Merino/indianapolis rot"

X3A7=Yes
07 Glove box, leather INDIANAPOLISROT 1 51167891317
For vehicles with
All leather "Merino/silverstone 2"

X3A9=Yes
07 Glove box, leather SILVERSTONE II 1 51167891315
For vehicles with
Leather, "Merino"/sepang-bronze, light
or
Leather "Merino"/silverstone 2
or
Leather "Merino"/schwarz

LKA8=Yes

LKA9=Yes

LKSW=Yes
07 Glove box vinyl SCHWARZ 1 51168040863 +core
08 Rubber buffer 2 51168244385 $1.13
09 Key button f glove box TITAN II 1 51168040490
09 Key button f glove box CHROM PEARLGREY 1 09/2007 51168046775
10 Screw for thermoplastic plastics 4X10 T20 1 07147118899 $0.53
11 Glove box damper 1 51167002385 $21.72
12 Axial securing clip 4 07129905714 $1.03
13 Cover, power distribution box 1 51167009310 $5.20
14 Hinge, glove box 3 51431945178 $1.95
15 Cover 1 51167131248 $8.79
16 Catch strap, glove box 1 51167002386 $4.23
17 Cover, catch bracket 2 51167029754 $2.25
18 Glove box locking mechanism 1 51166958222 $48.56
19 Torx-bolt with washer ISA M5X10 3 07149128051 $0.63
20 Cover, fuse carrier 1 51167114806 $7.00
21 Fillister head self-tapping screw ST4,2X17 4 07146977362 $1.09
22 ISA screw M6X18MM 2 07129903977 $1.54
23 Covering glove box 1 51167130884 $8.79
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
