3' E46 330d Trailer loading ramp

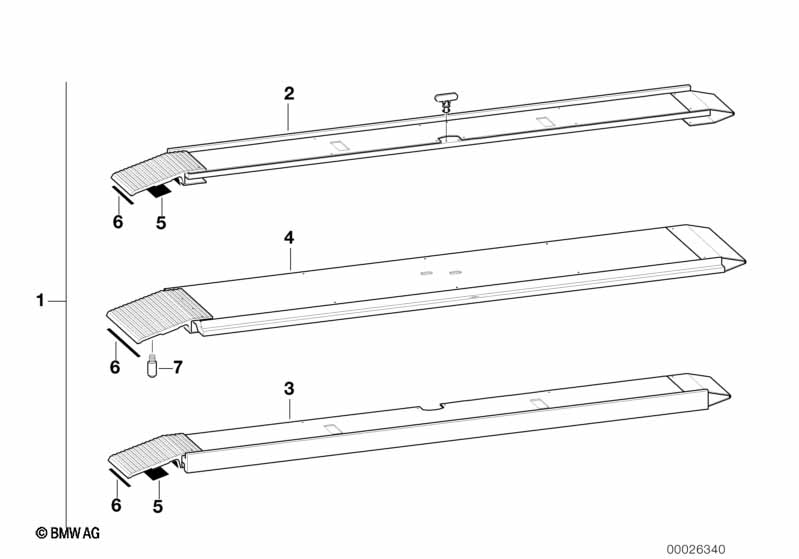

Trailer loading ramp
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Loading ramp 1 86309410984 $1319.00 ENDED, EBA 9416396
02 Lateral trim panel right 1 86290000748 ENDED, +core
03 Lateral trim panel left 1 86290000749 $318.06 ENDED, +core
04 Center part 1 86290000750 $318.06 ENDED, +core
05 Sealing tape 38X3 MM 2 86290000746 ENDED
06 Sealing tape 16X3 MM 3 86290000745 ENDED
07 Pin 2 86290000747 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
