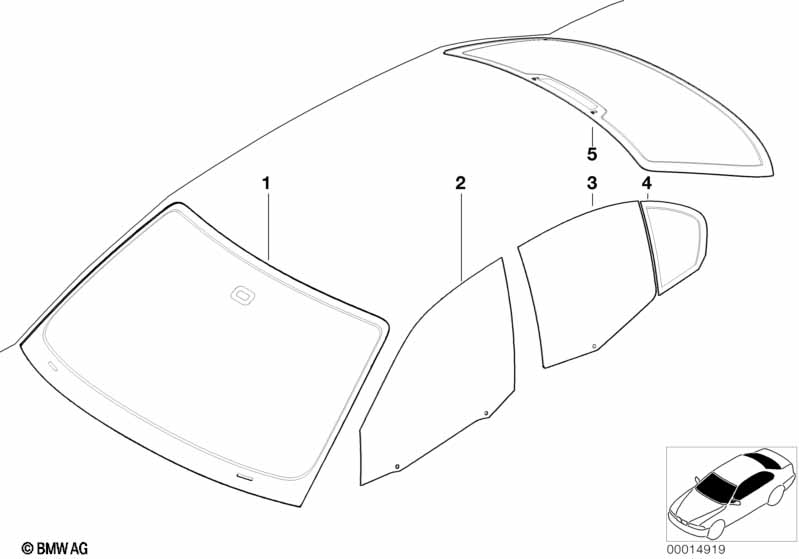

3' E46 325i Glazing

Glazing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Attention! Vehicles with rain sensor
until 03/99 need in addition an
interior rear-mirror including covers.
To find out the part number however
it is necessary to search for vehicles
from 03/99.
A modified silkscreen print is applied
adjacent to the sun visor in place of
the colored wedge.
A modified silkscreen print is applied
adjacent to the sun visor in place of
the colored wedge.
For vehicles with
Climate comfort windscreen
and
Rain sensor

S358A=No

S521A=Yes
01 Green windshield, rain sensor 1 09/2001 51318257930 $396.47
only in conjunction with
-- Windshield adhesive kit 1 09/2001 83192289180
Required for repair
-- Cleaner R1 100ML 1 09/2001 83192211217
-- Covering Upper 1 09/2001 51318196162 $32.57
-- Sound insulation f apron 1 09/2001 51488238934 $11.61
For vehicles with
Green windscreen, green shade band
and
Rain sensor

S354A=Yes

S521A=Yes
01 Green windshield, rain sensor 1 10/1998 09/2001 51318257932 $435.53
only in conjunction with
-- Windshield adhesive kit 1 10/1998 09/2001 83192289180
Required for repair
-- Cleaner R1 100ML 1 10/1998 09/2001 83192211217
-- Covering Upper 1 10/1998 09/2001 51318196162 $32.57
-- Sound insulation f apron 1 10/1998 09/2001 51488238934 $11.61
01 Green windshield, rain sensor 1 09/2001 51317059706 $435.53
only in conjunction with
-- Windshield adhesive kit 1 09/2001 83192289180
Required for repair
-- Cleaner R1 100ML 1 09/2001 83192211217
-- Covering Upper 1 09/2001 51318196162 $32.57
-- Sound insulation f apron 1 09/2001 51488238934 $11.61
For vehicles with
Green windscreen, green shade band
and
Climate comfort windscreen
and
Rain sensor

S354A=Yes

S358A=No

S521A=No
01 Green windshield 1 51318196154 $396.47
only in conjunction with
-- Windshield adhesive kit 1 83192289180
Required for repair
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Covering Upper 1 51318196162 $32.57
-- Sound insulation f apron 1 51488238934 $11.61
02 Side window, green, door, front left 1 51338196025 $119.76
02 Side window, green, door, front right 1 51338196026 $119.76
03 Side window, green, door, rear left 1 51348196027 $119.93
03 Side window, green, door, rear right 1 51348196028 $119.93
04 Side window,green fixed,left rear door 1 51348196029 $64.25
04 Side window,green fixed,right rear door 1 51348196030 $64.25
05 Rear window green 1 09/1999 51317001460 $355.34
only in conjunction with
-- Windshield adhesive kit 1 09/1999 83192289180
Important notice on standardization!
The window supplied as a replacement
part is equipped with more plugs than
the
original and also differs in appearance.
Reason:
Only the top-level version is now
being supplied. Any plugs that will not
be used on the individual vehicle must
be tied back out of the way.
Notes
  • EBA = Einbauanleitung (Installation instructions)
