3' E46 318i Conversion kit tail light Facelift 2001

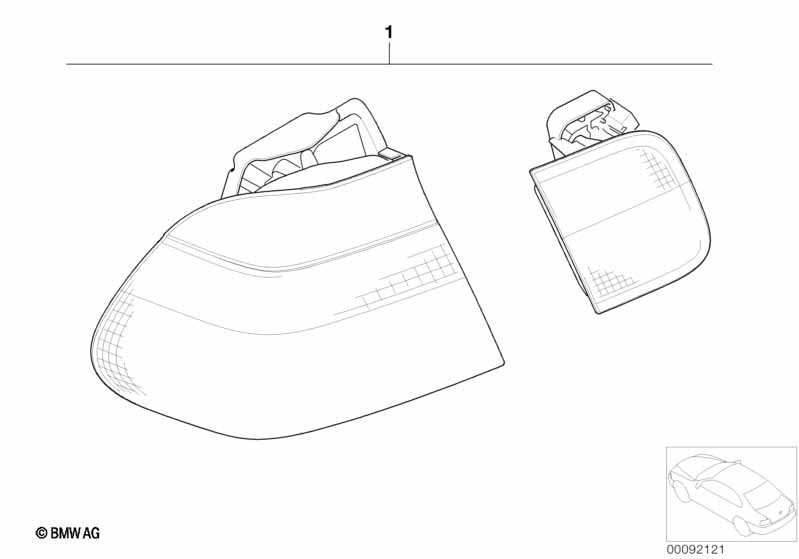

Conversion kit tail light Facelift 2001
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
For vehicles with
Xenon Light

S522A=Yes
01 Retrofit kit,rr light,facelift,yellow 1 09/2001 63210140252 ENDED
only in conjunction with
-- Switch unit, light / foglamps 1 09/2001 61319133019 $406.73
-- Set of retrofit cable,tail light facel. 1 09/2001 61120140220 $40.02 ENDED
01 Retrofit kit,rr light,facelift,white 1 09/2001 63210140253 ENDED
only in conjunction with
-- Switch unit, light / foglamps 1 09/2001 61319133019 $406.73
-- Set of retrofit cable,tail light facel. 1 09/2001 61120140220 $40.02 ENDED
For vehicles with
Fog lights

S520A=Yes
01 Retrofit kit,rr light,facelift,yellow 1 09/2001 63210140252 ENDED
only in conjunction with
-- Switch unit, light / foglamps 1 09/2001 61319133015 $406.73
-- Set of retrofit cable,tail light facel. 1 09/2001 61120140220 $40.02 ENDED
01 Retrofit kit,rr light,facelift,white 1 09/2001 63210140253 ENDED
only in conjunction with
-- Switch unit, light / foglamps 1 09/2001 61319133015 $406.73
-- Set of retrofit cable,tail light facel. 1 09/2001 61120140220 $40.02 ENDED
For vehicles with
Xenon Light

S522A=No
01 Retrofit kit,rr light,facelift,yellow 1 09/2001 63210140252 ENDED, EBA 0142052
only in conjunction with
-- Switch unit, light 1 09/2001 61319133011
-- Set of retrofit cable,tail light facel. 1 09/2001 61120140220 $40.02 ENDED
01 Retrofit kit,rr light,facelift,white 1 09/2001 63210140253 ENDED, EBA 0142052
only in conjunction with
-- Switch unit, light 1 09/2001 61319133011
-- Set of retrofit cable,tail light facel. 1 09/2001 61120140220 $40.02 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
