3' E46 330xd Hydro steering-oil pipes

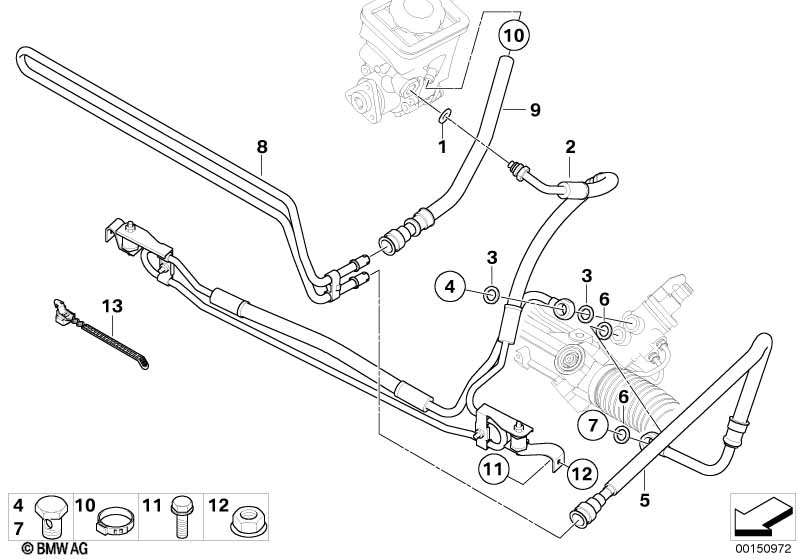

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Gasket ring D=7,65MM 1 64508390601 $1.93
02 Pressure hose assy 1 32416762384 +core
03 Gasket ring A14X20-CUSN 2 32411093596 $0.31
04 Banjo bolt with check valve M14X1,5X27,4 1 32416781261 $10.02
05 Return pipe 1 32416796391
06 Gasket ring A16X22-CUSN 2 32411093597 $0.27
07 Hollow bolt M16X28 1 02/2012 32416783887 $3.98 ENDED
07 Hollow bolt M16X28 1 32416852470
08 Cooling coil 1 17111436262 $57.27
09 radiator return line 1 32416796366
10 Hose clamp 1 32416751128 $0.98
11 Hex bolt with washer M6X14-U1-8.8 2 07119905525 $0.47
12 Self-locking hex nut M6-8-ZNNIV SI 2 07119905949 $0.24
13 Cable tie 2 61131391721 $1.77
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
