3' E46 318i DVD-system

DVD-system

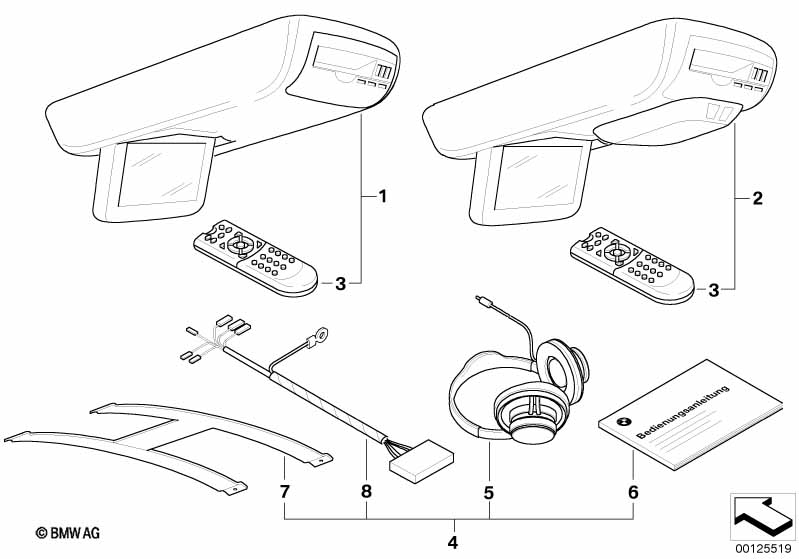

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
Unit is available with every country
code and NTSC or PAL monitor. The
country code/monitor is defined during
the order by entering the country name
in the extra box (entry in German or
English)
suitable for infrared headphones

S302A=No

S401A=No

S403A=Yes
01 DVD-system 1 82820304644 ENDED, +core
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
DVD system region 2 for the following
countries: Egypt, Bahrain, Belgium,
Denmark, Germany, England, Estonia,
Finland, France, Greece, Ireland,
Iceland, Israel, Italy, Kuwait, Latvia,
Lebanon, Lithuania, Luxembourg,
Netherlands, Norway, Oman, Austria,
suitable for infrared headphones

S302A=No

S401A=No

S403A=Yes
01 DVD-system 1 82820301770 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
Unit is available with every country
code and NTSC or PAL monitor. The
country code/monitor is defined during
the order by entering the country name
in the extra box (entry in German or
English)
suitable for infrared headphones

S302A=No

S401A=Yes

S403A=No
01 DVD-system 1 82820304644 ENDED, +core
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
DVD system region 2 for the following
countries: Egypt, Bahrain, Belgium,
Denmark, Germany, England, Estonia,
Finland, France, Greece, Ireland,
Iceland, Israel, Italy, Kuwait, Latvia,
Lebanon, Lithuania, Luxembourg,
Netherlands, Norway, Oman, Austria,
suitable for infrared headphones

S302A=No

S401A=Yes

S403A=No
01 DVD-system 1 82820301770 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
Unit is available with every country
code and NTSC or PAL monitor. The
country code/monitor is defined during
the order by entering the country name
in the extra box (entry in German or
English)
suitable for infrared headphones

S302A=No

S401A=No

S403A=No
01 DVD-system 1 82820304644 ENDED, +core
only in conjunction with
-- Installation kit DVD-system 1 82820304006 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
DVD system region 2 for the following
countries: Egypt, Bahrain, Belgium,
Denmark, Germany, England, Estonia,
Finland, France, Greece, Ireland,
Iceland, Israel, Italy, Kuwait, Latvia,
Lebanon, Lithuania, Luxembourg,
Netherlands, Norway, Oman, Austria,
suitable for infrared headphones

S302A=No

S401A=No

S403A=No
01 DVD-system 1 82820301770 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304006 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
Unit is available with every country
code and NTSC or PAL monitor. The
country code/monitor is defined during
the order by entering the country name
in the extra box (entry in German or
English)
suitable for infrared headphones

S302A=Yes

S401A=No

S403A=Yes
02 DVD-system 1 82820304645 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
DVD system region 2 for the following
countries: Egypt, Bahrain, Belgium,
Denmark, Germany, England, Estonia,
Finland, France, Greece, Ireland,
Iceland, Israel, Italy, Kuwait, Latvia,
Lebanon, Lithuania, Luxembourg,
Netherlands, Norway, Oman, Austria,
suitable for infrared headphones

S302A=Yes

S401A=No

S403A=Yes
02 DVD-system 1 82820301771 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
Unit is available with every country
code and NTSC or PAL monitor. The
country code/monitor is defined during
the order by entering the country name
in the extra box (entry in German or
English)
suitable for infrared headphones

S302A=Yes

S401A=No

S403A=No
02 DVD-system 1 82820304645 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304006 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
DVD system region 2 for the following
countries: Egypt, Bahrain, Belgium,
Denmark, Germany, England, Estonia,
Finland, France, Greece, Ireland,
Iceland, Israel, Italy, Kuwait, Latvia,
Lebanon, Lithuania, Luxembourg,
Netherlands, Norway, Oman, Austria,
suitable for infrared headphones

S302A=Yes

S401A=No

S403A=No
02 DVD-system 1 82820301771 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304006 ENDED, +core, EBA 0304008
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
Unit is available with every country
code and NTSC or PAL monitor. The
country code/monitor is defined during
the order by entering the country name
in the extra box (entry in German or
English)
suitable for infrared headphones

S302A=Yes

S401A=Yes

S403A=No
02 DVD-system 1 82820304645 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
For vehicles with
Alarm system
and
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical
DVD system region 2 for the following
countries: Egypt, Bahrain, Belgium,
Denmark, Germany, England, Estonia,
Finland, France, Greece, Ireland,
Iceland, Israel, Italy, Kuwait, Latvia,
Lebanon, Lithuania, Luxembourg,
Netherlands, Norway, Oman, Austria,
suitable for infrared headphones

S302A=Yes

S401A=Yes

S403A=No
02 DVD-system 1 82820301771 ENDED
only in conjunction with
-- Installation kit DVD-system 1 82820304005 ENDED, +core, EBA 0304008
Note: It may not be possible to use the
luggage separator net when the rear
seat bench is folded down.
03 Remote control 1 82820141342 ENDED
05 Headphones INFRAROT 1 65500303098 $110.95 ENDED
06 Operating instructions DVD-SYSTEM 1 01290303097 $4.15 ENDED
For vehicles with
Lift-up-and-slide-back sunroof, electric
and
Glass roof, electrical

S401A=No

S403A=No
07 Roof bow 1 82820303274 ENDED, +core
For vehicles with
Lift-up-and-slide-back sunroof, electric
or
Glass roof, electrical

S401A=Yes

S403A=Yes
07 Roof bow 1 82820303275 ENDED, +core
08 Electric power cable DVD-SYSTEM 1 82820304133 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
