3' E46 316ti Single parts for rear window wiper

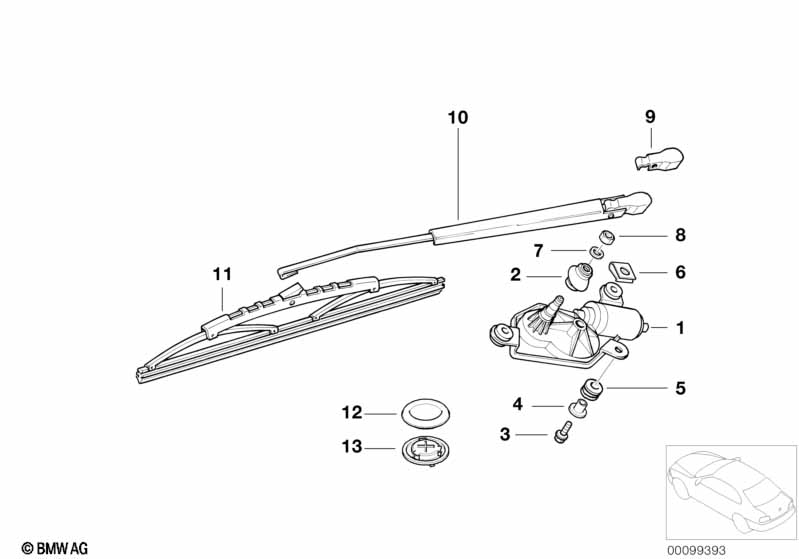

Single parts for rear window wiper
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear window wiper motor 1 67636925096
02 Grommet 1 61627001601
03 Hex bolt M6X20-U2-8.8 3 07119903995 $0.53
04 Bearing sleeve f rear window wiper motor 3 61628214661 $1.14
05 Damper ring f rear window wiper motor 3 61628214659 $2.27
06 C-clip nut M6 3 07147151144 $0.74
07 Wave washer 1 07119904115 $0.09
08 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
09 Wiper arm cover 1 61628357518 $3.42
10 Rear window wiper arm 1 61627009883
11 Wiper blade 1 61627009884
For vehicles with
Rear window wiper

S315A=No
12 Plug GRUNDIERT 1 01/2005 61617079660
12 Plug GRUNDIERT 1 61612359953
Required for repair
-- Nut 1 61617074568
-- O-ring 30X2,65-N-NBR70 1 07119905179
13 Nut 1 01/2005 61617074568
13 Nut 1 61612409119 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
