3' E46 316ti Single parts for rear window cleaning

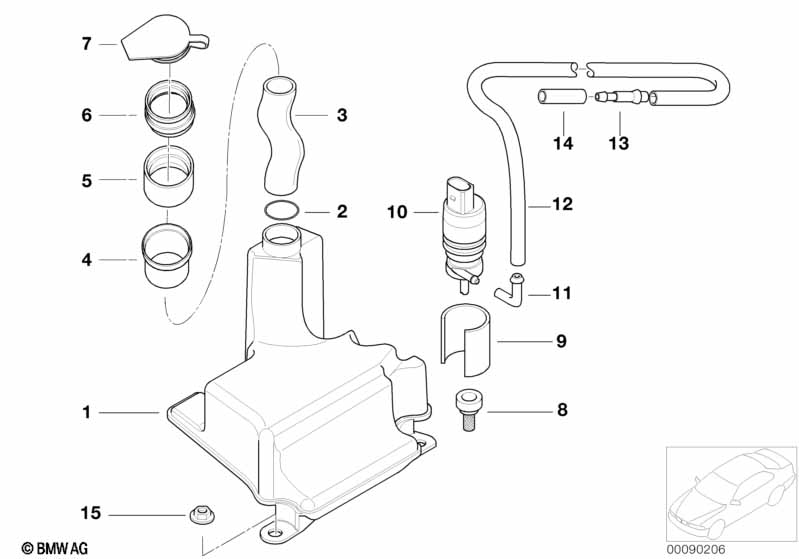

Single parts for rear window cleaning
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Container rear window washer 1 61687010988
02 O-ring 25X2,65 1 07119903236 $1.89
03 Filler pipe 1 61687010987
04 Filler neck 1 61688374558 $9.65
05 Bottom cover 1 61681386303 $1.77
06 Center cover 1 61681386302 $4.18
07 Upper cover 1 61681386301 $1.18
08 Strainer f wash pump 1 61667006063 $2.62
09 Insulation 1 61687007944 $1.12
10 Wash pump 1 67128362154 $42.75
11 Support 1 61668374371 $1.12
12 Hose line X 61668362762 $2.92
13 Valve 1 61688220822 $4.78
Length 60 mm
14 Hose line 1 61668362762 $2.92
15 Plastic nut M6 3 16131176747 $0.53
