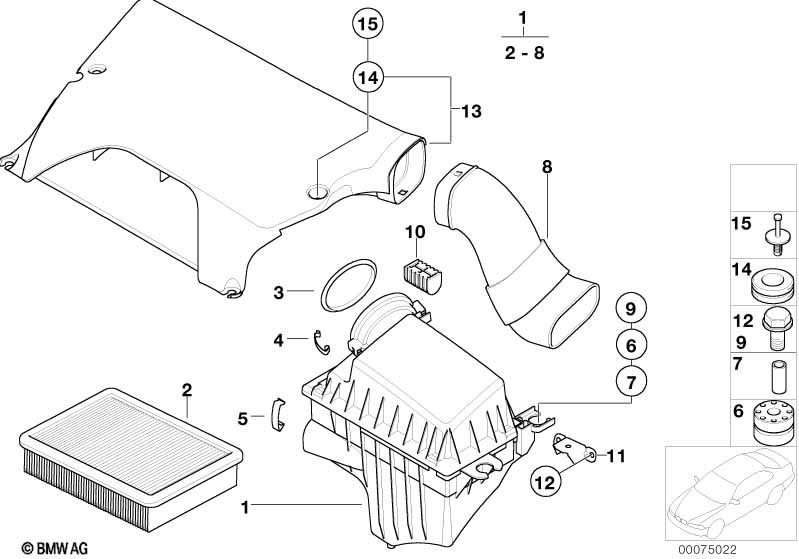

X5 E53 X5 3.0i Intake silencer / Filter cartridge Intake silencer / Filter cartridge

Intake silencer / Filter cartridge Intake silencer / Filter cartridge
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake muffler 1 13717503559 $300.56 +core
02 Air filter element 1 13721702908
03 O-ring 91X6MM 1 13711731893 $4.38
04 Spring clip L=34MM 2 13711707044 $1.16
05 Spring clip L=42MM 4 13711716113 $1.16
06 Rubber grommet 2 13711742771 $4.36
07 Spacer sleeve 2 13717571982 $1.93
08 Rubber boot 1 13711438471 $44.00 +core
10 Rubber Mounting 1 13711742763 $2.00
11 Support 1 13717501678 $3.46
12 Hex bolt with washer M6X12-U1-8.8 2 07119904517 $0.36
13 Intake manifold 1 13711437100 $45.45 +core
14 Rubber grommet 12X2MM 4 09/2006 31421236240 $1.93 ENDED
14 Rubber grommet 4 07147267586
15 Expanding rivet 4 51471919209 $0.45
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
