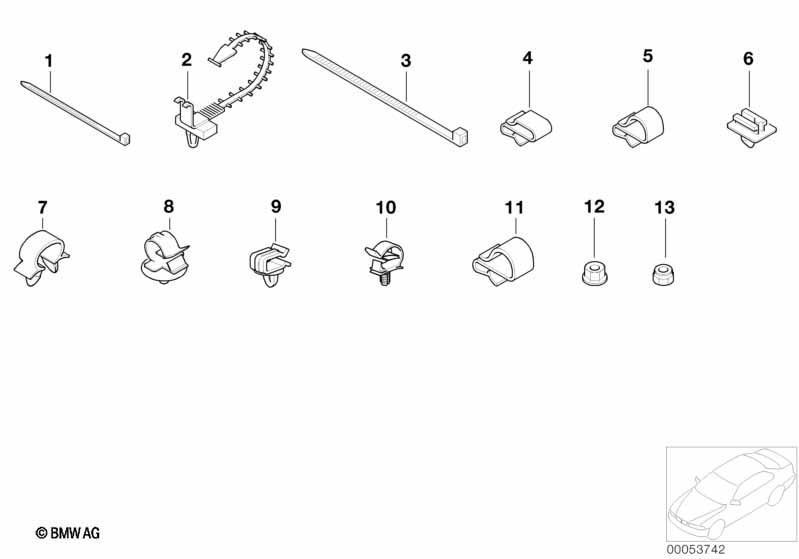

X5 E53 X5 3.0i Cable Harness Fixings

Cable Harness Fixings
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cable tie L=200MM/B=3,6MM X 61131367599 $0.43
02 Cable tie X 61131391721 $1.77
03 Cable tie L=292MM/B=4,8MM X 61131377134 $0.77
04 Cable clamp X 09/2003 51251943711 $0.42 ENDED
04 Fixing clamp A=3,5 - 6,0MM X 07147547239 $0.58
05 Holder X 12521732529 $0.80 ENDED
05 Holder X 01/2007 12527571932 $0.53 ENDED
05 Holder X 61278662930
06 Bracket, plug connection gray X 61138365536 $0.93
07 Cable holder D=12,8MM X 61131267476 $0.42
08 Clip retainer X 61138368029 $0.43
09 Cable holder X 61138353135 $0.35
10 Tubing support X 12521741316 $0.47
12 Nut M5 X 09/2003 12521719646 $0.27 ENDED
12 Flange nut M5 X 07141732625 $0.14
12 Nut M6 X 09/2003 12521719647 $0.38 ENDED
12 Nut M6 X 07146973709 $0.27
13 Hex nut M8 X 07149125856 $1.33
Notes
  • ENDED = the part has been discontinued (no longer available).
