X5 E53 X5 3.0i Basic cotrol unit DME

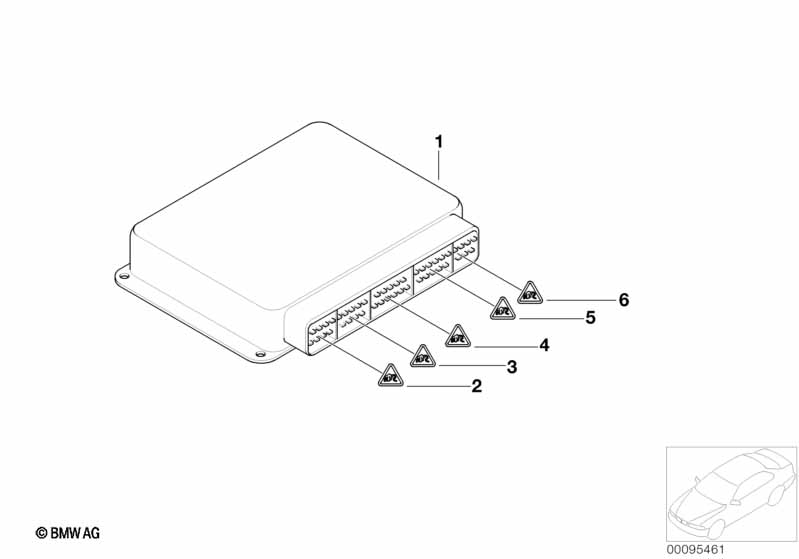

Basic cotrol unit DME
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. basic control unit DME MS43/ FLASH 1 09/2005 12147551616 $1186.02
02 Covering cap 1 12527502456 $4.72
only in conjunction with
-- Socket housing 9 POL. /A1 1 12521744624 $1.73
03 Covering cap 24 POL. /A 1 12521744626 $2.62
only in conjunction with
-- Socket housing 12 POL. /A 1 12521744627 $1.73
-- Socket housing 12 POL. /B 1 12521744628 $1.73
04 Covering cap 52 POL. /A 1 07/2003 12521744632 $2.47 ENDED
only in conjunction with
-- Socket housing 26 POL. /A 1 07/2003 12521744633 $1.73
-- Socket housing 26POL. /B 1 07/2003 12521744634 $1.73
04 Covering cap 52POL./Z-CODE 1 12527526424 $4.88
only in conjunction with
-- Socket housing 26 POL. /A 1 12521744633 $1.73
-- Socket housing 26POL. /B 1 12521744634 $1.73
05 Covering cap 40 POL. /B 1 12521744629 $2.30
only in conjunction with
-- Socket housing 20 POL. /A 1 12521744630 $1.73
-- Socket housing 20 POL. 1 12521744631 $1.73
Notes
  • ENDED = the part has been discontinued (no longer available).
