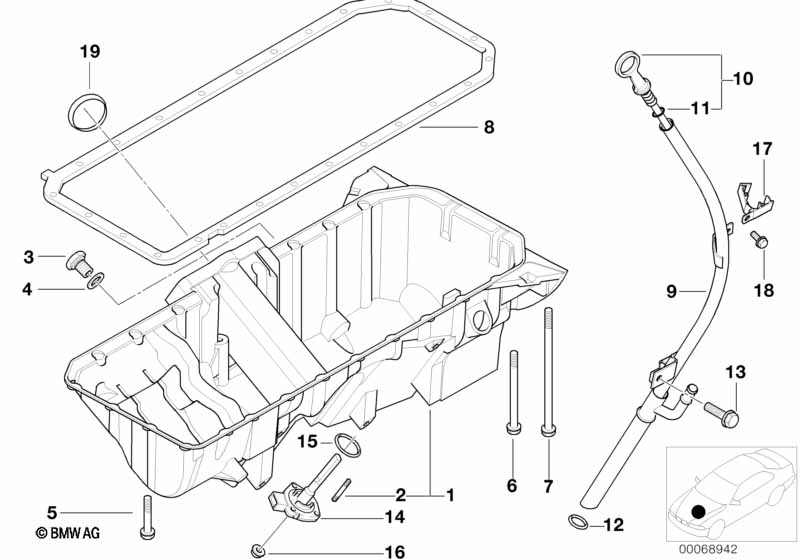

X5 E53 X5 3.0i Oil pan/oil level indicator

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137531944 $551.84 +core
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
03 Screw plug M12X1,5 1 09/2004 11131273093 $3.68 ENDED
03 Screw plug M12X16 1 11137535106 $3.68
04 Gasket ring A12X17-CU 1 07119963151 $0.57
05 Hex bolt 19 11131740000 $0.37
06 Hex bolt with washer M6X64 2 11131435807 $0.67
07 Hex bolt with washer M6X100 4 11131435806 $1.08
08 Gasket Steel 1 11131437237 $48.50
09 Guide tube 1 11437502109 $62.35 +core
10 Dipstick 1 11437509626 $15.30
11 O-ring 9X2,2 2 11431717666 $0.73
12 O-ring 19,5X3 1 11431740045 $1.81
13 Hex bolt with washer M8X20-U1-8.8 1 07119904992 $0.55
14 Oil levelling sensor 1 12617508003 $163.50
15 Gasket ring 1 12611744292 $6.42
16 Hex nut M6-8-ZNNIV SI 3 07119905544 $0.64
17 Tubing support 1 13311716049 $1.13
18 Hex bolt with washer M6X12-U1-8.8 1 07119904517 $0.36
19 Assembly ring 1 09/2003 11137506632 $8.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
