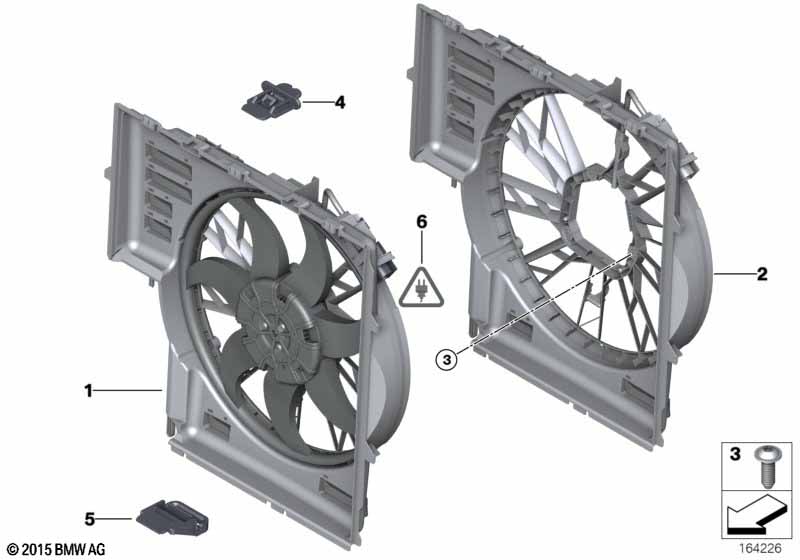

X5 E53 X5 4.8is Fan shroud/fan

Fan shroud/fan
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fan housing with fan 1 17427521767 $557.36
02 Fan shroud 1 17107524294 $408.40
03 Screw 3 17117587715
04 Bracket upper 2 17117528618 $5.83
05 Bracket, fan housing 2 17117505344 $5.83
06 Socket housing 4 POL. 1 61136900536 $4.20
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,35MM² AG 2 12521427612 $0.50 SI 2 02 05(194)
-- Plug connection female LSK8 4-6MM² ELA 2 12521436650 $2.58 SI 2 02 05(194)
-- Single conductor seal 0,75-1,0MM² 2 12521748973 $0.13
-- Grommet 4MM² 2 12527505634 $3.47
Notes
  • SI = Service Information
