X5 E53 X5 4.8is Transmission oil cooler line

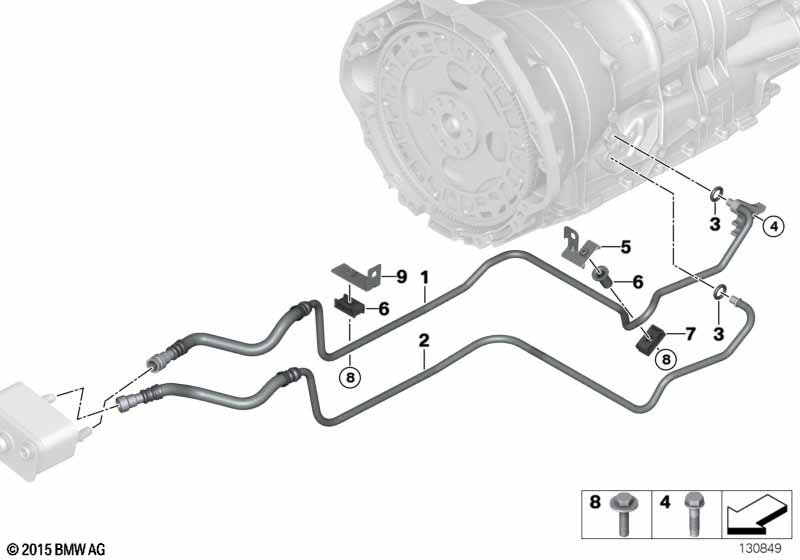

Transmission oil cooler line
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission oil cooler line, flow 1 17227510046 $142.75
02 Transmission oil cooler line, return 1 17227510047 $142.75
03 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
04 Screw M8X28-Z3 1 17227555715 $0.78
05 Bracket, oil cooler line 1 17227521764 $5.73
06 Spacer sleeve 2 17227525819 $2.57
07 Bracket oil pipe 2 17227519270 $3.52
08 Hex bolt with washer M6X25-U2 2 07119905871 $0.59
09 Bracket, oil cooler line 1 17227526071 $5.73
