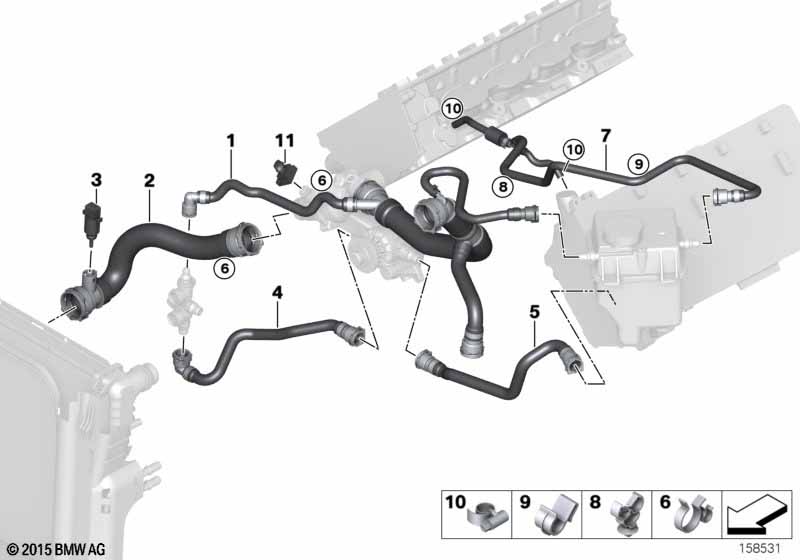

X5 E53 X5 4.8is Cooling System Water Hoses

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Coolant hose 1 17127526856 $123.47 +core
02 Coolant hose 1 17127509963 $54.57 +core
03 Temperature sensor, coolant 1 13621433077 $25.03
04 Coolant hose 1 17127509965 $32.78 +core
05 Coolant hose 1 17127509966 $32.78 +core
06 Hose clamp 40/19 1 17127513909 $2.37
07 Coolant hose 1 17127509967 $44.88 +core
08 Wire holder, two-place 1 61138380213 $0.35
09 Hose clamp 1 17111719199 $1.18
10 Hose clamp L=9-12 2 07129952102 $1.18
11 Socket housing 2 POL. 1 12521427615 $1.73
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,35MM² AG 2 12521427612 $0.50 SI 2 02 05(194)
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
