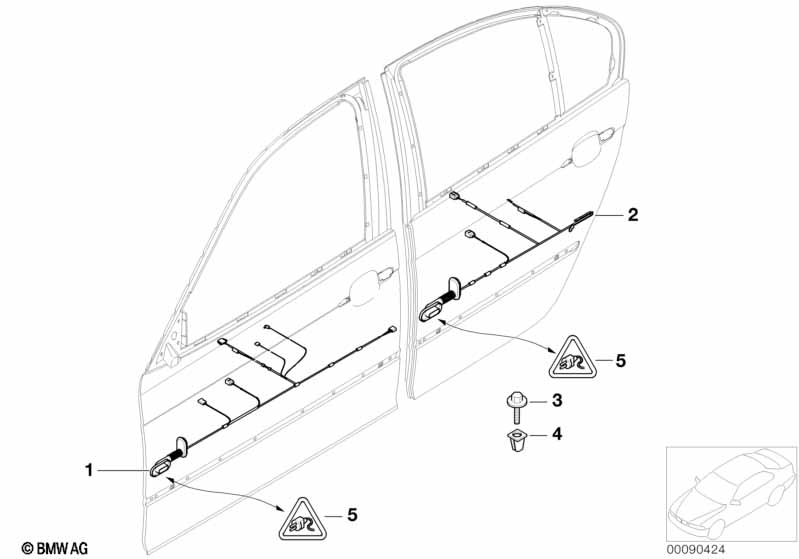

X5 E53 X5 4.4i Door cable harnesses
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable harness, door, front | 2 | 04/2001 | 61126909104 | $121.75 | ||||
| 01 | Cable harness, door, front | 2 | 10/2001 | 10/2002 | 61126913727 | $121.75 | |||
| 01 | Cable harness, door, front | 2 | 10/2002 | 61126923511 | $121.75 | ||||
| 01 | Cable harness, door, front | 2 | 04/2001 | 10/2001 | 61124108022 | $121.75 | |||
| 02 | Cable harness, door, rear | 2 | 10/2000 | 61126909109 | $121.75 | ENDED | |||
| 02 | Cable harness, door, rear | 2 | 10/2000 | 04/2001 | 61126910429 | $121.75 | ENDED | ||
| 02 | Cable harness, door, rear | 2 | 04/2001 | 10/2002 | 61126913730 | $121.75 | |||
| 02 | Cable harness, door, rear | 2 | 10/2002 | 61126923514 | $121.75 | ||||
| 03 | Hex bolt | 8 | 61136954557 | $0.79 | |||||
| 04 | Blind rivet nut, flat headed | M5 | 8 | 61136906058 | $0.62 | ENDED | |||
| 04 | Blind rivet nut, flat headed | M5 | 8 | 61136954561 | $0.63 | ||||
| 05 | Plug housing | 22 POL. | 4 | 61138372631 | $3.17 | ||||
| only in conjunction with | |||||||||
| -- | Pin contact MQS ELA with cable | 0,2- 0,5MM² | X | 61130005200 | $2.00 | ||||
| -- | Pin contact MQS ELA with cable | 0,75 QMM | X | 61130006666 | $2.15 | ||||
| -- | Pin-contact ELO- Power 5,2 x 0,63 | 1.0-2.5MM² | X | 61136901733 | $1.12 | ||||
| -- | Lock | 4 | 61138372627 | $0.70 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
