X5 E53 X5 4.4i Rear carrier

Rear carrier

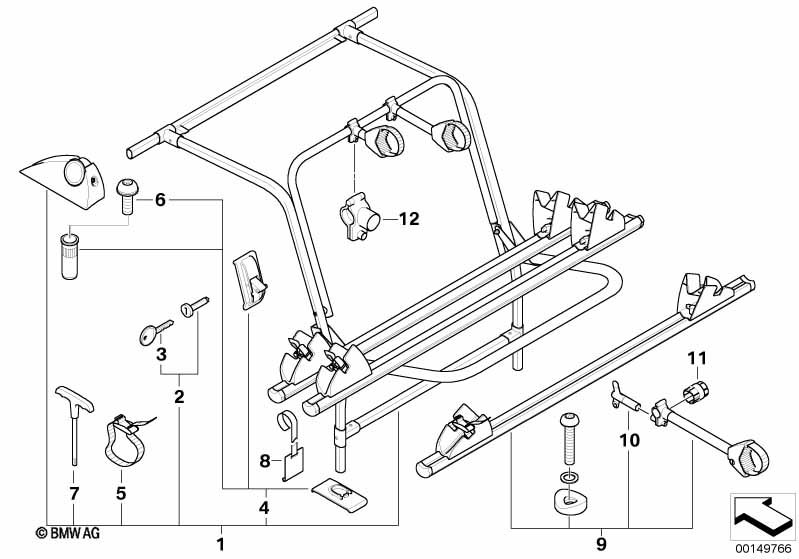

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
For vehicles with
Roof railing
Not suitable for aerodynamic package

S386A=Yes
01 Rear carrier 1 82710309192 $681.00 ENDED, EBA 0309198, EBA 0309199
only in conjunction with
-- Adhesive 1K 50 ML 1 82699408866 $14.79
02 Lock cylinder with key 1 82720303536 $24.75
03 Key (Code) CODE 001...041 1 82720144049 $8.50 +core
04 Installation kit rear carrier 1 82710309194 $53.50 ENDED, EBA 0309199
only in conjunction with
-- Adhesive 1K 50 ML 1 82699408866 $14.79
05 Strap 1 82720154315 $2.50
06 Protective screw 2 82710302089 $2.62 ENDED
07 Torx wrench 1 82790302000 $12.50 ENDED
08 Holding strap 1 82720309909 $55.50 ENDED, +core
09 Upgrade kit 3rd bicycle 1 82710309193 $139.95 ENDED, EBA 0309199
10 Key 1 82720390480 $4.25
11 Adapter 1 82720390018 $1.95 ENDED
12 Fixing clamp 1 82720410487 $10.25 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
