X5 E53 X5 3.0d Gearbox mounting parts

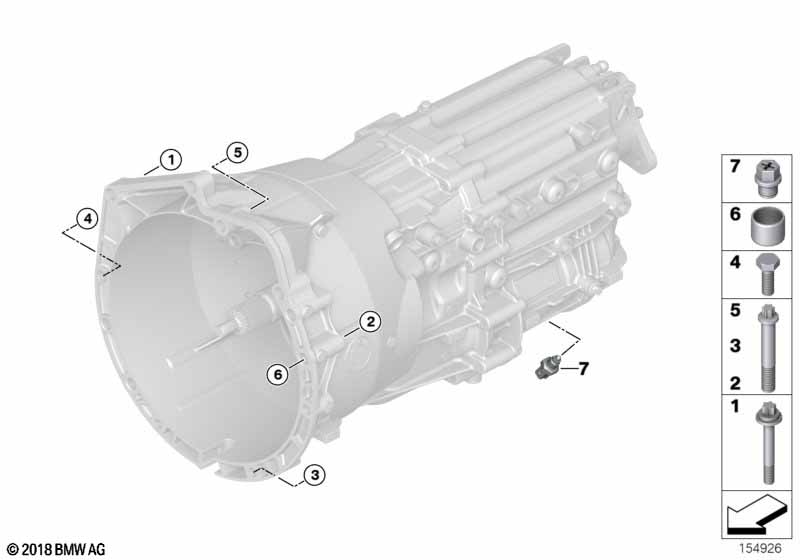

Gearbox mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Transmission cover panel in MG11/FG10
01 Torx bolt M12X50-8.8-ZNS3 2 23001222891 $1.32
02 Torx bolt M12X75 2 23001222893 $1.62
03 ASA-Bolt M8X50-8.8-ZNS3 4 23001222887 $1.13
04 Hex bolt M6X12-8.8-ZNNIV 1 07119905524 $0.27
05 Torx bolt M10X65-8.8-ZNS3 2 07129904681 $1.64
06 Dowel D=14,5MM 2 11117524470 $1.65
07 Backup light switch M12X1.5 1 23147524811 $11.00
