X5 E53 X5 3.0d Gear shift parts,manual transm./4-wheel

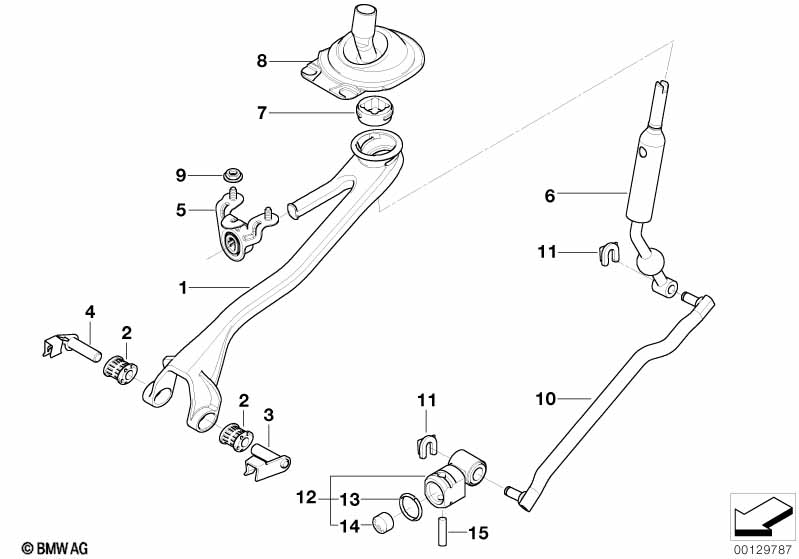

Gear shift parts,manual transm./4-wheel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shifting arm, reinforced 1 25117525268
02 Bearing sleeve, ultra-oval L=21MM 2 25117528407 $2.67
03 Bearing pin, left 1 25111221579 $7.25
04 Bearing pin, right 1 25111221580 $7.25
05 Bearing, shifting arm 1 25111434625 $17.40
07 Bearing, shift lever 1 25111220600 $10.33
08 Rubber boot 1 25111434626 $30.45
09 Hex nut with plate M8 2 25111220483 $0.88
10 Selector rod 1 10/2004 25117540549
11 Securing clip 2 25117571899 $0.66
12 Gearshift rod joint 1 25117526415 $37.51
13 Lock Ring 1 25111222451 $0.33
14 Plastic washer 1 25111434194 $0.85
15 Dowel pin 1 23411466134 $0.70
