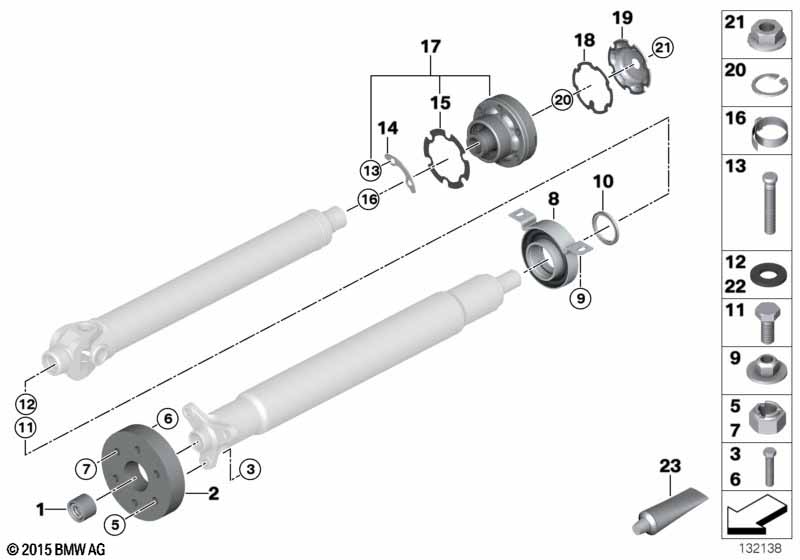

X5 E53 X5 3.0d Drive shaft, single components, 4-wheel

Drive shaft, single components, 4-wheel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Centering sleeve hard 1 26117526806 $28.35
02 Universal joint LK=96MM 1 26111229360 $110.44
LK = bolt hole
03 Hex bolt M12X1.5X62 ZNS3 3 26117635643
05 Self-locking hex nut M12X1,5-10-ZNS3 3 26127536563 $1.00
06 Hex bolt M12X1.5X62 ZNS3 3 26117635643
07 Self-locking hex nut M12X1,5-10-ZNS3 3 26127536563 $1.00
08 Center Mount 1 26121229726 $94.94
09 Hex nut BM8-8-ZNNIV-SI 2 07129904874
10 Dustcover plate D=30X58X5,5-CRH 1 26111225088 $3.08
11 Hex bolt M12X1,5X25 1 07119911694 $0.82
12 Washer D=36MM/ZNS3 1 26117572710 $2.27
13 Knurled bolt M10X61 6 26111229775 $1.77
14 Reinforcement D=11MM/ZNS 3 26117502653 $2.28
15 Flat gasket, metal VL-103 1 26111229078 $8.03
16 Muffler clamp D=34MM 1 26117542264 $2.28
17 Constant-velocity joint wth knurled bush LK=86MM (Z=32) 1 12/2002 26117526822 $188.25
Z=Number of teeth
18 Washer-gasket VLHS-2 1 02/2001 26117504635 $2.40
19 End cover with gasket 1 12/2002 26117540778 $5.67
20 Snap ring 22,5X1,2 1 26111225017 $0.75
21 Hex nut with ribs M10/SW16 6 26111227843 $0.75
23 Lubricant Olistamoly 2 LN 584 LO 100G X 83190447919
