X5 E53 X5 3.0d Glove box

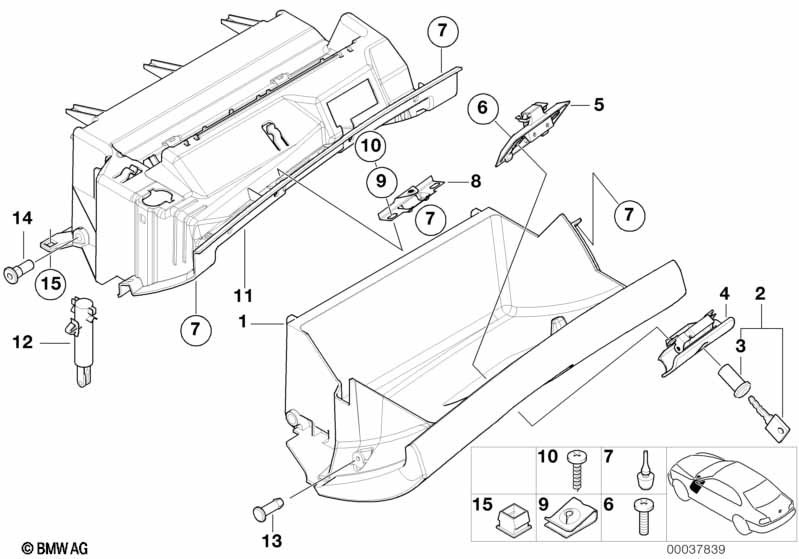

Glove box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Glove box HELLBEIGE 1 51167001262 ENDED, +core
01 Glove box GRAU 1 51167001265 ENDED, +core
01 Glove box PASTELLGRÜN 1 51167001266 ENDED, +core
01 Glove box SCHWARZ 1 51168245971 +core
03 Rep.kit f lock cylinder 1 51167001461 $41.73
04 Glove box lock lower part SCHWARZ 1 51168163018 $13.87
05 Glove box lock upper part SCHWARZ 1 51168163017 $14.52
06 Countersunk screw M5X20 2 07119905564 $1.05
07 Rubber buffer 4 51168244385 $1.13
08 Catch 1 51168402206 $16.23
09 C-clip nut 2 07146988451 $0.36
10 Fillister head self-tapping screw ST4,2X16-Z2 2 07119907948 $0.18
11 Glove box housing SCHWARZ 1 51168247108 +core
12 Glove box damper 1 51168224806 $13.18
12 Glove box damper 1 51163418919 $10.76
13 Pin 1 51161828956 $0.48
14 Pin 2 51458397589 $5.62
15 Insert 2 51458166654 $0.35
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
