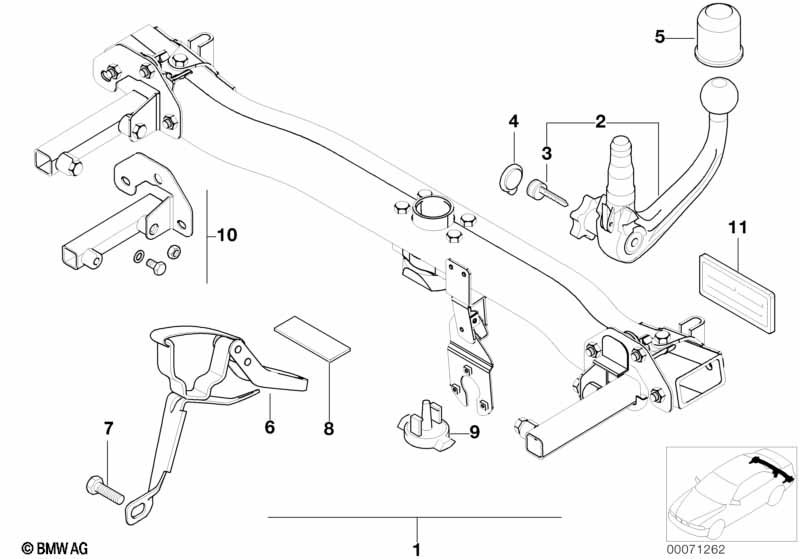

X5 E53 X5 3.0d Towing hitch, detachable

Towing hitch, detachable
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Towing hitch, detachable 1 71606796334 EBA 0152604
02 Removable ball 1 71606761678 +core
Enter key code
03 Key (code) 2wxx WESTFALIA 1 71601094282 $28.18
03 Key (code) 2axx WESTFALIA 1 71601134421
04 protective cap, key 1 71601134422 $1.04
05 Trailer hitch ball protection cap 1 71601246076
06 Bracket, trailer hitch ball 1 71601097191 $47.99 ENDED, +core
07 Hex bolt with washer M8X20-U1-8.8 2 07119904992 $0.55
08 Set felt strip self-adhesive 1 51452353024
09 Blind plug 1 71606751035
10 Mechanical mounting parts set 1 71606754205 $318.06
11 Drawbar load ratings plate MAX.120 KG 1 71601096067
11 Drawbar load ratings plate MAX.150 KG 1 71606770125
11 Label "AHK operation" 1 71601096066
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
