X6 E71 X6 40dX Retrofit kit, remote cntrl,indep.heating

Retrofit kit, remote cntrl,indep.heating
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
For vehicles with
Auxiliary heating








S536A=Yes
Not approved for installation in
Russian-market vehicles (no frequency
approval).

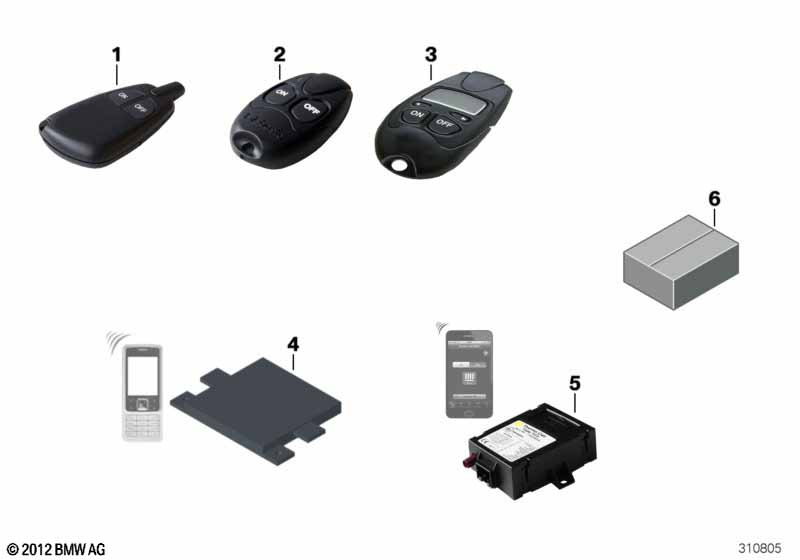

01 Retrofit kit, remote cntrl,indep.heating T90 1 64500392971 ENDED, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 2165615
Only in conjunction with position 6
With checkback for received switch-on
signal
02 Retrofit kit, remote cntrl,indep.heating T91 1 64500435769 EBA 0143722, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 0406619, EBA 0411375, EBA 0443099, EBA 2165615, EBA 2296204
Only in conjunction with position 6
With checkback for received switch-on
signal
03 Retrofit kit, remote cntrl,indep.heating T100 1 64500410385 EBA 0395829, EBA 0404558, EBA 0406619, EBA 0411374, EBA 0411375, EBA 0433094, EBA 2296204
Only in conjunction with position 6
With checkback for received switch-on
signal
and automatic heater timer HTM
04 Thermo Call switch unit retrofit kit TC1.1/DE 1 64500395010 ENDED, EBA 0395829, EBA 0404558, EBA 0411375
Only in conjunction with position 6
04 Thermo Call switch unit retrofit kit TC1.1/EN 1 64500395012 ENDED, EBA 0395829, EBA 0404558
Only in conjunction with position 6
04 Thermo Call switch unit retrofit kit TC2/DE 1 64500433514 ENDED, EBA 0395829, EBA 0404558, EBA 0411375
Only in conjunction with position 6
04 Thermo Call switch unit retrofit kit TC2/EN 1 64500433515 ENDED, EBA 0395829, EBA 0404558
Only in conjunction with position 6
Note:
A SIM card (e.g., a prepaid card) not
included in the package contents is
required to operate the TC3. The
customer must supply this SIM card
before the start of the service
installation process.
SIM card specifications: 1.8V or 3V SIM
card from a communications service
provider that supports mobile radio
standard GSM 900/1800.
Not approved for installation in
Russian-market vehicles (no frequency
approval).
05 Thermo Call switch unit retrofit kit TC3 1 64502334000 EBA 0395829, EBA 2296204, EBA 2338748
only in conjunction with
-- Temperature sensor 1 61310404639
Only in conjunction with position 6
Not approved for installation in
Russian-market vehicles (no frequency
approval).
06 Aux.heating control element upgrade kit 1 64500395920 ENDED, EBA 0395133, EBA 0395829, EBA 0411374, EBA 0433094
kit is only required once in combination
of remote control and ThermoCall
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
