X6 E71 X6 40dX Install.kit, independent heater

Install.kit, independent heater

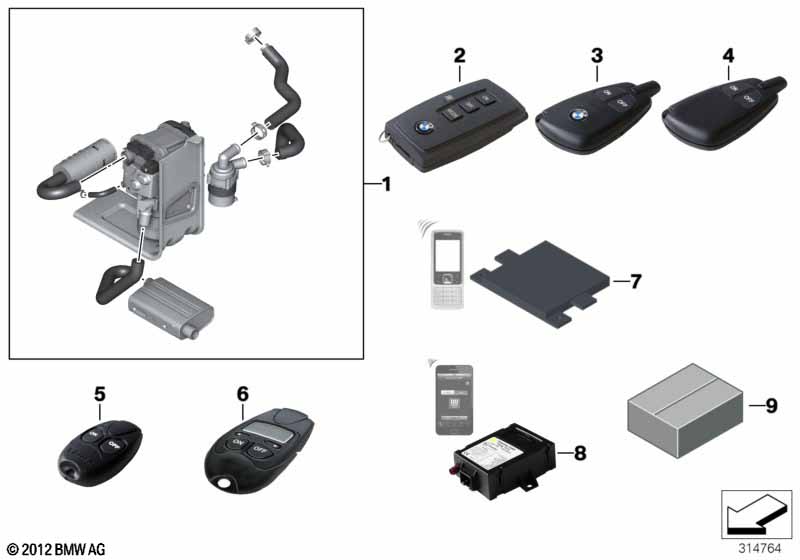

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
Mode of operation: bypass heating
circuit w/o engine heat-up
Note for diesel cars: The auxiliary
heating system retrofit kits are not
suitable for rape methyl ester (RME).
Operating note: Auxiliary heating
system can be operated via CID without
additional control element
For vehicles with
BMW Diesel with Blue Performance
















S163A=No
If no 90 Ah AGM battery is installed in
the car, it must be retrofitted.
01 Install.kit, independent heater 1 64500415948 EBA 0415956, EBA 0417854, EBA 0433094
only in conjunction with
-- Coolant dual pipe 1 64219171370
Can additionally be operated with
Telestart handheld transmitter
and/or retrofit kit, radio remote
control T90
or retrofit kit for RF remote control
T91
or retrofit kit, radio remote control
T100
and/or retrofit kit for
ThermoCall switching unit
-- Return hose N57 1 64219222752 +core
Can additionally be operated with
Telestart handheld transmitter
and/or retrofit kit, radio remote
control T90
or retrofit kit for RF remote control
T91
or retrofit kit, radio remote control
T100
and/or retrofit kit for
ThermoCall switching unit
For vehicles with
Radio frequency 434 MHz
and
Radio frequency 315 MHz
Not approved for installation in
Russian-market vehicles (no frequency
approval).

S874A=No

S876A=No
02 Telestart handheld transmitter 1 61316934807 ENDED
only in conjunction with
-- Remote control transmitter battery 6V LITHIUM 1 61316912986 $33.68
03 Telestart handheld transmitter T93 1 64129144646 ENDED
03 Telestart handheld transmitter T95 1 64129196785
04 Retrofit kit, remote cntrl,indep.heating T90 1 64500392971 ENDED, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 2165615
Only in conjunction with position 9
With checkback for received switch-on
signal
05 Retrofit kit, remote cntrl,indep.heating T91 1 64500435769 EBA 0143722, EBA 0395829, EBA 0403250, EBA 0404558, EBA 0404560, EBA 0406619, EBA 0411375, EBA 0443099, EBA 2165615, EBA 2296204
Only in conjunction with position 9
With checkback for received switch-on
signal
06 Retrofit kit, remote cntrl,indep.heating T100 1 64500410385 EBA 0395829, EBA 0404558, EBA 0406619, EBA 0411374, EBA 0411375, EBA 0433094, EBA 2296204
Only in conjunction with position 9
With checkback for received switch-on
signal
and automatic heater timer HTM
For vehicles with
Radio frequency 434 MHz
and
Radio frequency 315 MHz
Not approved for installation in
Russian-market vehicles (no frequency
approval).
Only in conjunction with position 9

S874A=No

S876A=No
07 Thermo Call switch unit retrofit kit TC1.1/DE 1 64500395010 ENDED, EBA 0395829, EBA 0404558, EBA 0411375
07 Thermo Call switch unit retrofit kit TC1.1/EN 1 64500395012 ENDED, EBA 0395829, EBA 0404558
07 Thermo Call switch unit retrofit kit TC2/DE 1 64500433514 ENDED, EBA 0395829, EBA 0404558, EBA 0411375
07 Thermo Call switch unit retrofit kit TC2/EN 1 64500433515 ENDED, EBA 0395829, EBA 0404558
For vehicles with
Radio frequency 434 MHz
and
Radio frequency 315 MHz
Note:
A SIM card (e.g., a prepaid card) not
included in the package contents is
required to operate the TC3. The
customer must supply this SIM card
before the start of the service
installation process.
SIM card specifications: 1.8V or 3V SIM
card from a communications service
provider that supports mobile radio
standard GSM 900/1800.
Not approved for installation in
Russian-market vehicles (no frequency
approval).

S874A=No

S876A=No
08 Thermo Call switch unit retrofit kit TC3 1 64502334000 EBA 0395829, EBA 2296204, EBA 2338748
only in conjunction with
-- Temperature sensor 1 61310404639
Only in conjunction with position 9
For vehicles with
Radio frequency 434 MHz
and
Radio frequency 315 MHz
Not approved for installation in
Russian-market vehicles (no frequency
approval).

S874A=No

S876A=No
09 Aux.heating control element upgrade kit 1 64500395920 ENDED, EBA 0395133, EBA 0395829, EBA 0411374, EBA 0433094
kit is only required once in combination
of remote control and ThermoCall
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
