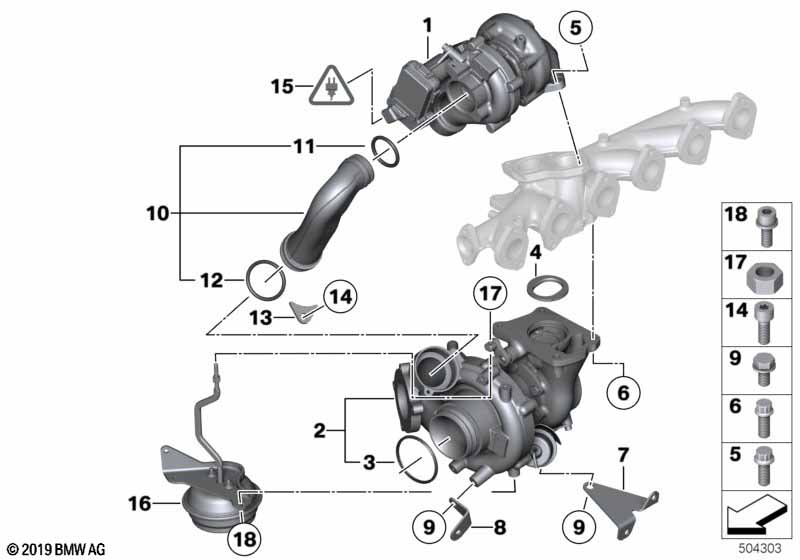

X6 E71 X6 40dX Turbo charger

Turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please always observe repair
instructions 11 65 020!
01 Exch. turbo charger 1 11657808361 +core
only in conjunction with
-- Installation kit for turbocharger VALUE LINE 1 11652456238
02 Exch. turbo charger 1 11657808363 +core
only in conjunction with
-- Installation kit for turbocharger VALUE LINE 1 11652456238
03 Preformed seal 1 11617796622 $6.65
04 Spacer ring 1 09/2011 11658507327 ENDED
04 Spacer ring 1 11658509942
05 Screw M8X20 3 11657801771
06 Screw M10X25 4 11652243402 $5.37
07 Support 1 11657805468
08 Support 1 11658508094
09 Hex bolt with washer M8X16 5 07119905528 $0.62
10 Connection pipe 1 11657808168
11 O-ring 40,64X5,33 1 11658509142
12 O-ring 50,17X5,33 1 11658509141
13 Mounting panel 3 11657823036
14 ISA screw M6X16-8.8-ZNNIV 3 07129905536 $0.64
16 Vacumm box 1 11658513664
17 Hex nut M6-8-ZNNIV SI 1 07119905543 $0.38
18 Torx-bolt with washer M6X16-8.8-ZNNIV 3 07129904819 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
