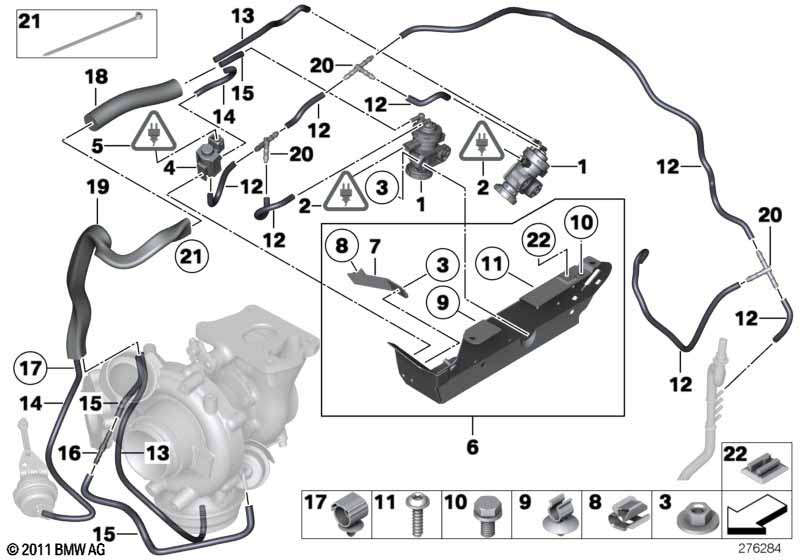

X6 E71 X6 40dX Vacum control-engine-turbo charger

Vacum control-engine-turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pressure converter 2 11658509323
03 Hex nut 5 09/2003 11628508395 ENDED
03 Hex nut BM6-8-ZNS3 5 07129904870 $0.36
04 Electr.valve 1 11747810831 $46.70
06 Holder 1 11657823404
07 Holder 1 13627823946
08 Clip 1 12521437136 $0.63
09 Hose clamp 1 07147228759
10 Hex bolt with washer M6X12-U1-8.8 4 09/2011 07119904517 $0.36
10 Hex bolt with washer M6X12-U1-8.8 2 09/2011 07119904517 $0.36
11 Screw for thermoplastic plastics 60X22 2 09/2011 13627805193 $0.53
12 Vacuum hose black 3,5X2,0 X 11747797129 $17.14
13 Vacuum hose blue 3,5X2,0 X 11657796879 $16.43
14 Vacuum hose white 3,5X2,0 X 09/2011 11657797185 ENDED
14 Vacuum hose white 3,5X2,0 X 11658507249
15 Vacuum hose red 3,5X2,0 X 11657796857 $16.43
16 Connection piece D=4MM 1 11657803012 $1.19
17 Tubing support 2 11668509223
18 Heat protection 150MM 1 11657823848
19 Heat protection 360MM 2 11658509194
20 T-Connector 3 11721439973 $1.07
21 Cable tie L=200MM/B=3,6MM 1 61131367599 $0.43
22 Bracket, plug connection gray 2 61138365536 $0.93
Notes
  • ENDED = the part has been discontinued (no longer available).
