X6 E71 X6 40dX Intake muffler/Filter cartridge/HFM

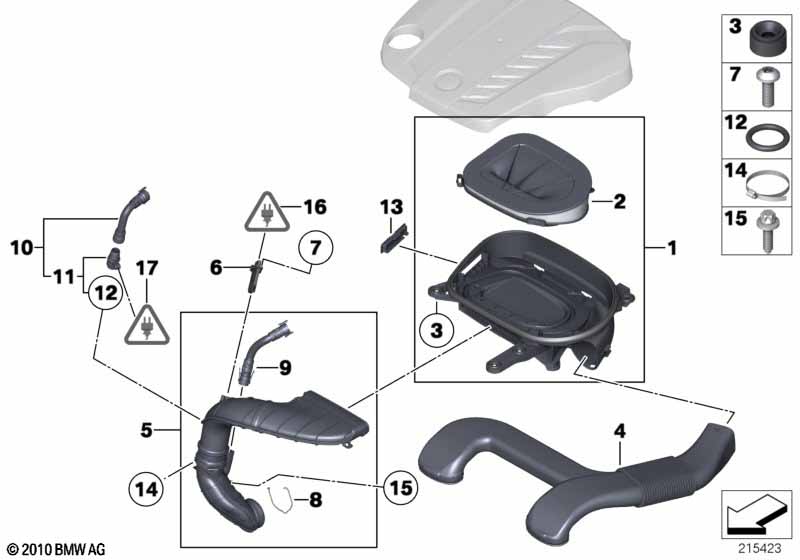

Intake muffler/Filter cartridge/HFM
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake muffler 1 13717812061
02 Air filter element 1 13717811026
03 Rubber Mounting 4 11147799108
04 Intake duct 1 13717812058
05 Filtered air pipe 1 13717812060
06 Hot-film air mass meter 1 13627804150
07 Fillister head screw ISA 4X12 2 05/2010 07147135132 $0.16
07 Fillister head screw with collar M4X14 2 46637659479 $1.20
08 Spring clip 1 17517802664 $2.88
09 Pipe 1 13717810772
For vehicles with
Cold-climate version

S842A=Yes
10 Pipe with heating element 1 13718516240
11 Heater element 1 13717787941 $62.02 +core
12 O-ring 1 13717787197 $3.75
13 Bypass valve 1 13717812062
14 Hose clamp L77-84 1 07129952131 $1.78
15 Torx bolt BM6X20-8.8-ZNS3 1 07119907243
Notes
  • +core = plus core charge (possibility of a return of the old part)
