X6 E71 X6 40dX Mounting parts f radiator

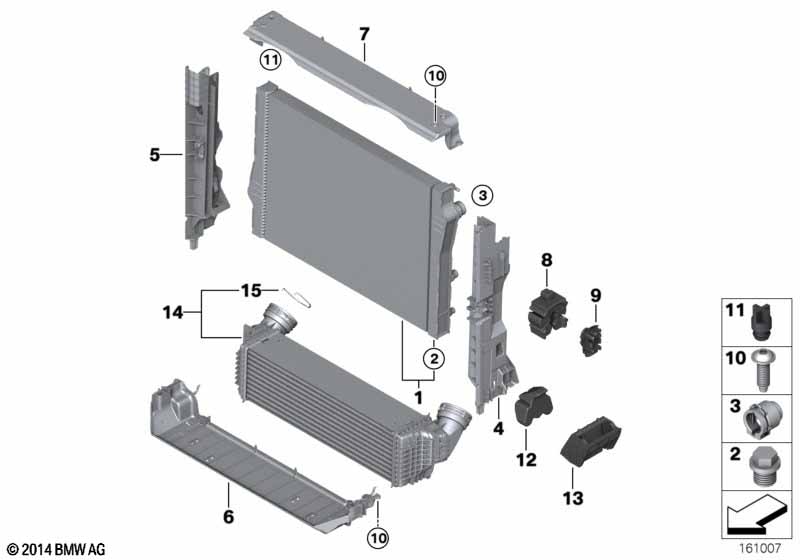

Mounting parts f radiator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Radiator 1 17117533472 $466.63
02 Drain plug radiator 1 17117571988 $7.72
03 Lock 2 17127799184 $5.02 +core
04 Module mount, left 1 17118572188
05 Module mount, right 1 17118572189
06 Module mount, bottom 1 17117795909 $58.03
07 cover, module carrier 1 17118574000
08 Rubber Mounting 2 17117553480 $8.20
09 Support rubber mounting 2 17117553481 $5.83
10 Screw self-tapping D6X20 ZNS3 8 17117536971 $1.12
11 Thrust adapter 4 17117558350 $4.78
12 Rubber Mounting 2 17117598791 $8.43
13 Bracket f.radiator 2 17117533537 $5.83
14 Charge-air cooler 1 17517809321 $382.47
15 Spring clip 2 17517802664 $2.88
Notes
  • +core = plus core charge (possibility of a return of the old part)
