X6 E71 X6 40dX Engine Suspension

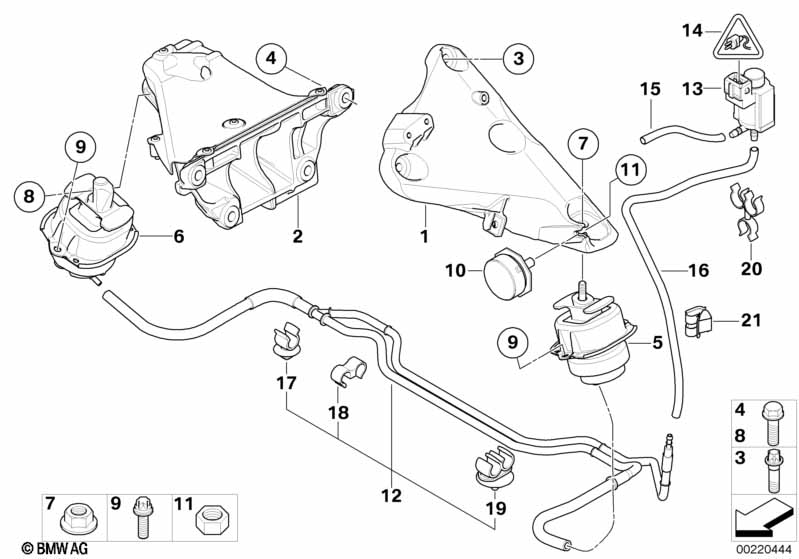

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine supporting bracket, left 1 22116790021 +core
For vehicles with
Chassis & suspens. setup"Adaptive Drive"

S2VAA=Yes
01 Engine supporting bracket, left 1 04/2012 22116790021 +core
only in conjunction with
-- Exp. hose, Adaptive Drive 1st section 1 04/2012 32416854142
02 Engine supporting bracket, right 1 22116790026 +core
03 Torx screw M10X40-Z1-10.9 3 07129903976 $1.05
04 Hex bolt M10X40-10.9ZNS3 4 07119905655 $1.42
05 Engine mount 1 22116795418
Required for repair
-- Hex nut M12X1,5-10 ZNS3 1 07119906050 $1.09
-- Torx bolt M10X30-U1-ZNS3 2 07129906491 $4.25
06 Engine mount 1 22116793018
Required for repair
-- Hex bolt M12X50 1 07119904904 $2.12
-- Torx bolt M10X30-U1-ZNS3 2 07129906491 $4.25
07 Hex nut M12X1,5-10 ZNS3 1 07119906050 $1.09
08 Hex bolt M12X50 1 07119904904 $2.12
09 Torx bolt M10X30-U1-ZNS3 4 07129906491 $4.25
10 Vibration absorber 1 22116798129
11 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
12 Vacuum pipe 1 22116776413 $242.25
13 Electr.valve 1 11747810831 $46.70
15 Vacuum hose black 3,5X2,0 X 11747797129 $17.14
16 Vacuum hose red 3,5X2,0 X 11657796857 $16.43
17 Clip 2 22116779251 $0.43
18 Hose clamp 2 22116779252 $0.48
19 Clip 1 22116779253 $0.62
20 Hose clamp 1 11742248843 $1.18
21 Clip 2 12521437136 $0.63
Notes
  • +core = plus core charge (possibility of a return of the old part)
