X6 E71 X6 40dX Transfer case, single parts ATC 450

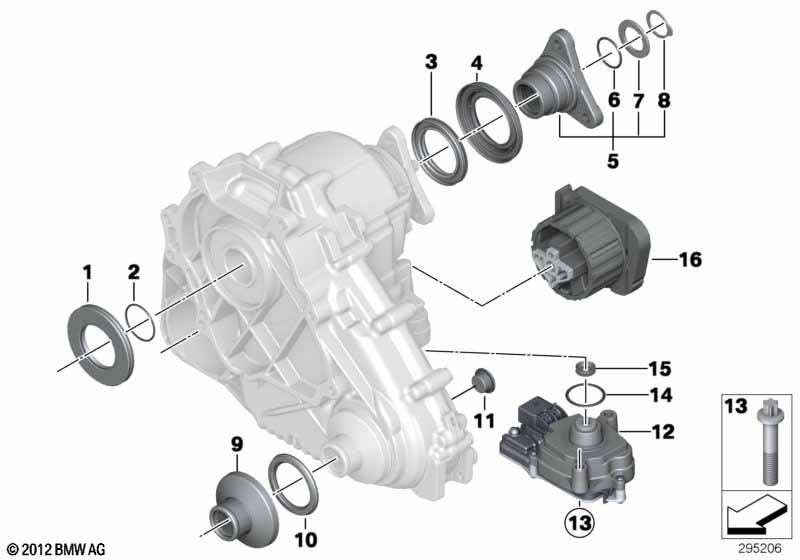

Transfer case, single parts ATC 450
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shaft seal 49,6X90X8 1 04/2012 27107539262 $16.37
02 O-ring 39X2 1 04/2012 27107609202
03 Shaft seal 52X78X8 1 04/2012 27107546667 $16.37
04 Dustcover plate 1 04/2012 27107597688
05 Output flange set 1 04/2012 27107595650
06 O-ring 31X2,5 1 04/2012 27107599326
07 Spacer rings set 1 04/2012 27107546670 $141.19
08 Lock Ring 28X2 1 04/2012 27107539525 $0.73
09 Dustcover plate 1 04/2012 27107539212 $7.84
10 Shaft seal 1 04/2012 27107539266 $16.37
11 Screw plug with O-ring M22X1,5-ZNS3 2 04/2012 33117525064 $3.91
12 Longitudinal torque module 1 04/2012 27607643762
only in conjunction with
-- ASA-Bolt M8X50-10.9 1 04/2012 27107593450
-- O-ring 34X3 1 04/2012 27107593451
-- Shaft seal 7.8X21X6 1 04/2012 27107593452
13 ASA-Bolt M8X50-10.9 2 04/2012 27107593450
14 O-ring 34X3 1 04/2012 27107593451
15 Shaft seal 7.8X21X6 1 04/2012 27107593452
16 Transmission bearing set 1 04/2012 22326780025 $122.77 ENDED
16 Transmission bearing set 1 04/2012 22316864675
Notes
  • ENDED = the part has been discontinued (no longer available).
