X6 E71 X6 40dX Steering linkage/tie rods

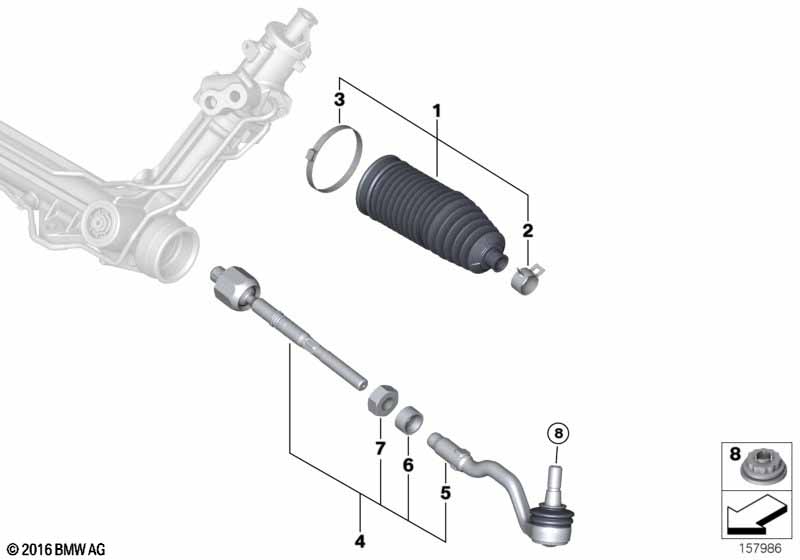

Steering linkage/tie rods
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit bellows 1 32106779622 $47.58
only in conjunction with
-- Grease FB-1 100G 1 83232208093
02 Hose clamp D= 19,4 - 22,5 2 32136756011 $1.82
03 Pipe clamp 2 32106765232 $6.95
04 Tie rod 2 32106793496
05 Ball joint 2 32106793497
Required for repair
-- Hex nut M14X1,5MM 2 32116774889 $3.11
-- Clamp ring 2 32216774890 $3.80
-- Combination nut M14X1,5-05 ZNS3 2 31126780480 $8.68
06 Clamp ring 2 32216774890 $3.80
07 Hex nut M14X1,5MM 2 32116774889 $3.11
08 Combination nut M14X1,5-05 ZNS3 2 31126780480 $8.68
