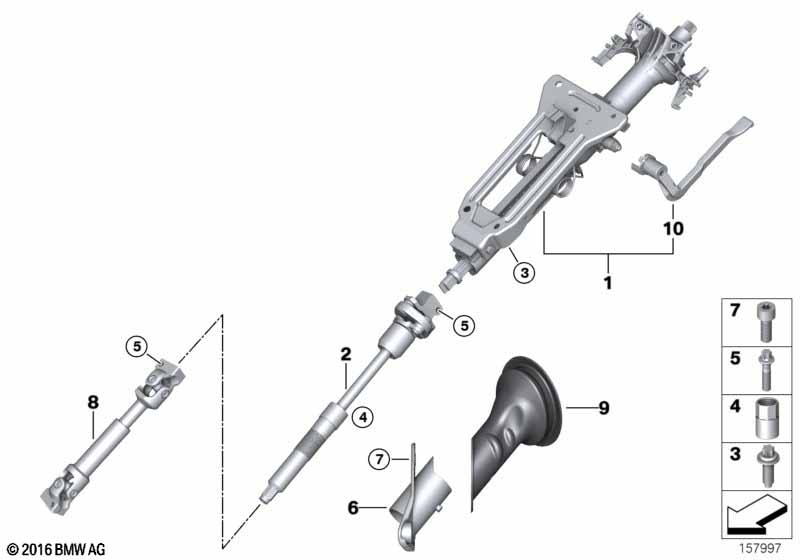

X6 E71 X6 40dX Steering column, manual / steering shaft

Steering column, manual / steering shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Steering wheel column adjustment,electr.
or
Comfort seat with memory

S245A=No

S456A=No
01 Manually adjust. steering column 1 10/2009 32306786253 $790.63
02 Steering shaft, center 1 05/2013 32306854951 ENDED
02 Steering shaft, center 1 32306864137
03 ASA-Bolt M8X28 4 32306762999 $0.92
04 Securing nut M30X1,5 1 32306774317 $9.53
05 Torx bolt M8X33 3 32306778609 $0.67
06 Mounting plate, steering shaft, center 1 32306777040 $45.77
07 ISA screw M6X16-8.8-ZNS3 3 04/2011 07129904588 $0.96
07 Fillister-head screw M6X16-8.8-ZNS3 3 04/2011 07119904105 $0.53 ENDED
07 ISA screw M6X16-8.8-ZNNIV 3 04/2011 07129905536 $0.64
08 Lower joint assy 1 32306774110 $380.17
09 Steering shaft sleeve 1 11/2011 32306777042 $30.98
09 Steering shaft sleeve 1 11/2011 32306854953
10 Adjust-lever 1 32306767203 $9.22
Notes
  • ENDED = the part has been discontinued (no longer available).
