X6 E71 X6 40dX Rear-axle-drive parts

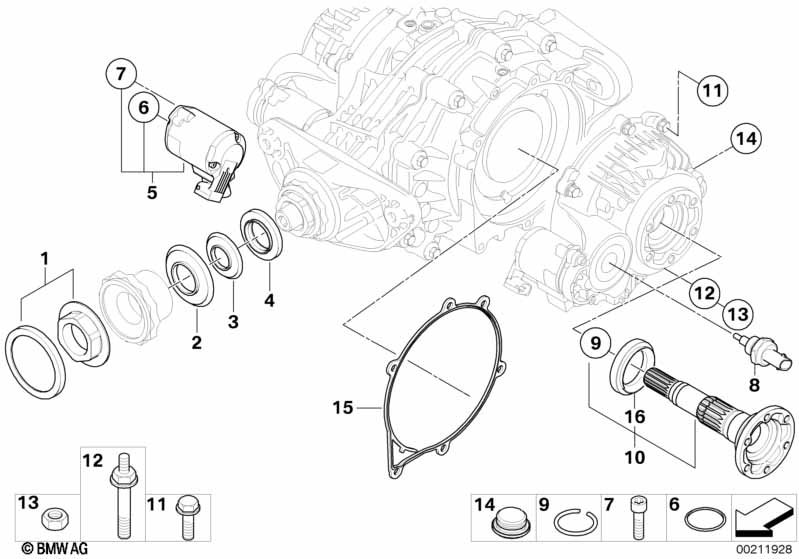

Rear-axle-drive parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit insert nut M39X1,5X16,5 1 08/2011 26117567770 $17.52
Note Repair Manual
01 Repair kit insert nut M39X1,5X20 1 08/2011 33127607158
Note Repair Manual
02 Dustcover plate 1 33137600693
03 dustcover plate, small 1 33121214064 $0.84
04 Shaft seal 50X78X10/15 1 06/2011 33107609536
only in conjunction with
-- Repair kit insert nut M39X1,5X16,5 1 06/2011 26117567770 $17.52 SI 1 21 06(300)
Note Repair Manual
04 Shaft seal 50X78X10/15 1 06/2011 33107609536
only in conjunction with
-- Repair kit insert nut M39X1,5X20 1 06/2011 33127607158
Note Repair Manual
05 Servo motor, differential, left 1 33107586237 $371.77
05 Servo motor, differential, right 1 33107586238 $371.77
06 O-ring 32X1,5 2 33107586235 $1.30
07 Fillister-head screw M6X30 4 33107586236 $0.82
08 Temperature sensor 2 33107582347 $16.20
09 Lock Ring 2 09/2008 33107591469 $0.93
Note Repair Manual
10 Output flange set 2 33107594401 $304.61
Note Repair Manual
11 Hex bolt M8X40 12 33107603392
14 Screw plug with O-ring M22X1,5-ZNS3 6 33117525064 $3.91
15 Gasket Asbestos Free 2 33107601264
Note Repair Manual
16 Shaft seal, output shaft 2 07/2008 33107582392 $32.20
See repair manual
REP 33 10 021
Important notice! PuMA measure AG-
23155813
Notes
  • SI = Service Information
