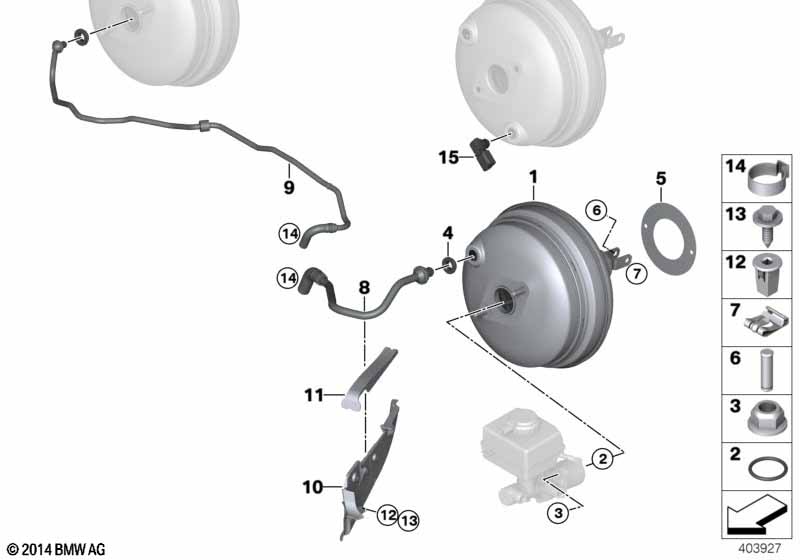

X6 E71 X6 40dX Power brake unit depression

Power brake unit depression
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake servo unit 1 34336791410 +core
only in conjunction with
-- Seal, brake booster 1 34336751977 $0.28
-- Self-locking collar nut M8-10 ZNS3 2 07119905374
02 Brake master cylinder o-ring 1 34311159007 $3.15
03 Self-locking collar nut M8-10 ZNS3 2 07119905374
04 Gasket ring 1 34331158929 $3.15
05 Seal, brake booster 1 34336751977 $0.28
06 Brake pedal pin 1 34336772928 $0.66
07 Fuse B10-ZNS3 1 07129904567 $0.40
08 Vacuum pipe 1 11667808071
10 Sealing partition-panel, bottom part 1 12906773553 $17.52
11 Partition seal, upper section 1 12907555109 $8.03
12 Expanding nut L=15MM, DMAX=12 2 07146976114 $0.09
13 Hex head screw ST4,8X19-U2 SW 2 07119904288 $2.05
14 Hose clamp 21,3MM 1 11151726339 $1.02
Notes
  • +core = plus core charge (possibility of a return of the old part)
