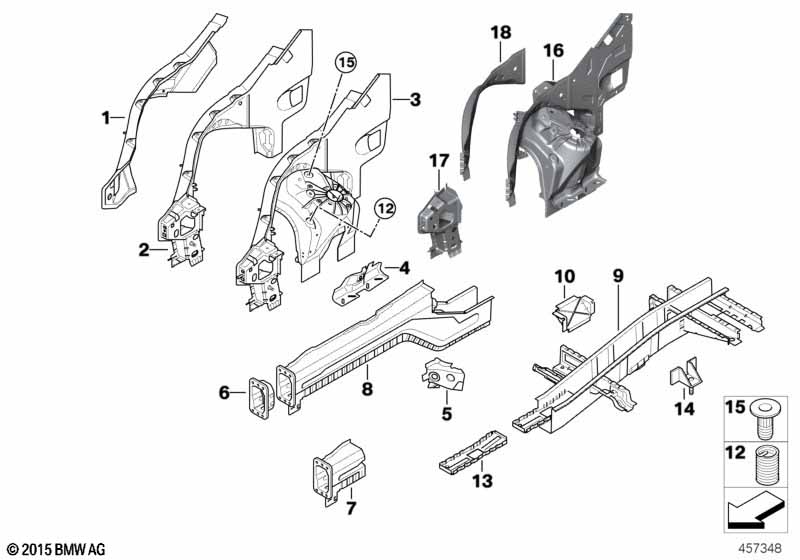

X6 E71 X6 40dX Wheelhouse/engine support

Wheelhouse/engine support
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting strut, left 1 41117174273 $299.59
01 Supporting strut, right 1 41117174274 $299.59
Seperate part discontinued, order image
pos. 1, 16 or 17 as required.
02 Wheel housing strut, front left 1 41117174457 $686.48 ENDED
02 Wheel housing strut, front right 1 41117174458 $686.48 ENDED
Performed using adhesive bonding/
riveting repair method.
only applies to
Wheelhousing, front right, replace
Seperate part discontinued, order image
pos. 1, 16 or 17 as required.
03 Wheelhousing without VIN, front right 1 08/2013 41117174456 $1287.94 ENDED
only in conjunction with
-- Blind rivet N2 25 08/2013 83190301419 $1.98
Required for repair
-- Bodywork adhesive K1 195ML 1 08/2013 83190413015 $244.89
Required for repair
-- Cleaner R1 100ML 1 08/2013 83192211217
Required for repair
-- Right supporting strut reinforcement 1 08/2013 41117174330 $43.30
Required for repair
-- Support, wheelhouse right 1 08/2013 41117174332 $52.37
Required for repair
-- Seam sealer 300ML 1 08/2013 83422409985
Performed using adhesive bonding/
riveting repair method.
only applies to
Wheelhousing, front left, replace
Seperate part discontinued, order image
pos. 1, 16 or 17 as required.
03 Front left wheelhouse 1 08/2013 41117174455 $1287.94 ENDED
only in conjunction with
-- Blind rivet N2 25 08/2013 83190301419 $1.98
Required for repair
-- Bodywork adhesive K1 195ML 1 08/2013 83190413015 $244.89
Required for repair
-- Cleaner R1 100ML 1 08/2013 83192211217
Required for repair
-- Left supporting strut reinforcement 1 08/2013 41117174329 $43.30
Required for repair
-- Support, wheelhouse left 1 08/2013 41117174331 $52.37
Required for repair
-- Seam sealer 300ML 1 08/2013 83422409985
Performed using adhesive bonding/
riveting repair method.
only applies to
Wheelhousing, front left, replace
and replace left engine mount
Seperate part discontinued, order image
pos. 1, 16 or 17 as required.
03 Front left wheelhouse 1 08/2013 41117174455 $1287.94 ENDED
only in conjunction with
-- Blind rivet N2 23 08/2013 83190301419 $1.98
Required for repair
-- Bodywork adhesive K1 195ML 1 08/2013 83190413015 $244.89
Required for repair
-- Cleaner R1 100ML 1 08/2013 83192211217
Required for repair
-- Engine support, left 1 08/2013 41117174281 $630.65
Required for repair
-- Left supporting strut reinforcement 1 08/2013 41117174329 $43.30
Required for repair
-- Support, wheelhouse left 1 08/2013 41117174331 $52.37
Required for repair
-- Seam sealer 300ML 1 08/2013 83422409985
03 Front left wheelhouse 1 41117377771
only in conjunction with
-- Blind rivet N2 23 83190301419 $1.98
Required for repair
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
Required for repair
-- Cleaner R1 100ML 1 83192211217
Required for repair
-- Engine support, left 1 41117174281 $630.65
Required for repair
-- Left supporting strut reinforcement 1 41117174329 $43.30
Required for repair
-- Support, wheelhouse left 1 41117174331 $52.37
Required for repair
-- Blind rivet N1 25 83190301414 $1.98
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
-- Cleaner R1 100ML 1 83192211217
-- Blind rivet N7 150 STÜCK 1 83192240352
-- Seam sealer 300ML 1 83422409985
Performed using adhesive bonding/
riveting repair method.
only applies to
Wheelhousing, front right, replace
and replace right engine mount
Seperate part discontinued, order image
pos. 1, 16 or 17 as required.
03 Wheelhousing without VIN, front right 1 08/2013 41117174456 $1287.94 ENDED
only in conjunction with
-- Blind rivet N2 23 08/2013 83190301419 $1.98
Required for repair
-- Bodywork adhesive K1 195ML 1 08/2013 83190413015 $244.89
Required for repair
-- Cleaner R1 100ML 1 08/2013 83192211217
Required for repair
-- Engine support right 1 08/2013 41117174282 $630.65
Required for repair
-- Right supporting strut reinforcement 1 08/2013 41117174330 $43.30
Required for repair
-- Support, wheelhouse right 1 08/2013 41117174332 $52.37
Required for repair
-- Seam sealer 300ML 1 08/2013 83422409985
03 Wheelhousing without VIN, front right 1 41117377772
only in conjunction with
-- Blind rivet N2 23 83190301419 $1.98
Required for repair
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
Required for repair
-- Cleaner R1 100ML 1 83192211217
Required for repair
-- Engine support right 1 41117174282 $630.65
Required for repair
-- Right supporting strut reinforcement 1 41117174330 $43.30
Required for repair
-- Support, wheelhouse right 1 41117174332 $52.37
Required for repair
-- Blind rivet N1 25 83190301414 $1.98
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
-- Cleaner R1 100ML 1 83192211217
-- Blind rivet N7 150 STÜCK 1 83192240352
-- Seam sealer 300ML 1 83422409985
04 Support, wheelhouse left 1 41117174331 $52.37
04 Support, wheelhouse right 1 41117174332 $52.37
05 Engine mount support, rear left 1 41117174543 $32.98
05 Engine mount support, rear right 1 41117174544 $32.98
06 Mount, cross member left 1 41117174305 $57.16
06 Mount, cross member right 1 41117174306 $57.16
07 Front left engine support 1 10/2006 41117174279 $524.98 ENDED
07 Engine support, left 1 41117174281 $630.65
07 Front right engine support 1 10/2006 41117174280 $524.98 ENDED
07 Engine support right 1 41117174282 $630.65
08 Engine support, left 1 41117174281 $630.65
08 Engine support right 1 41117174282 $630.65
09 Rear left engine support 1 41117174283 $463.81
09 Rear right engine support 1 41117174284 $463.81
10 Engine mount support, rear left 1 41117174543 $32.98
10 Engine mount support, rear right 1 41117174544 $32.98
12 Threaded plug M10X20MM X 07147046145 $4.23
12 Threaded plug M6X12MM X 07147046334 $3.08
13 Left engine support reinforcement 1 41117195357 $51.84
13 Reinforcement, engine support right 1 41117195358 $51.84
14 Bracket for ARS valve body 1 41137195239 $41.67
15 Blind rivet nut, flat headed M10 X 07146975569 $2.25
16 Front left wheelhouse 1 41117377771
Required for repair
16 Wheelhousing without VIN, front right 1 41117377772
Required for repair
-- Blind rivet N1 25 83190301414 $1.98
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Blind rivet N7 150 STÜCK 1 83192240352
-- Seam sealer 300ML 1 83422409985
16 Wheelhousing with VIN, front right 1 41112359510
17 Section of left front wheel housing 1 41117377785
17 Section of right front wheel housing 1 41117377786
18 Supporting strut,whl house, interior lft 1 41117442775
18 Supporting strut,whl house,interior rght 1 41117442776
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
